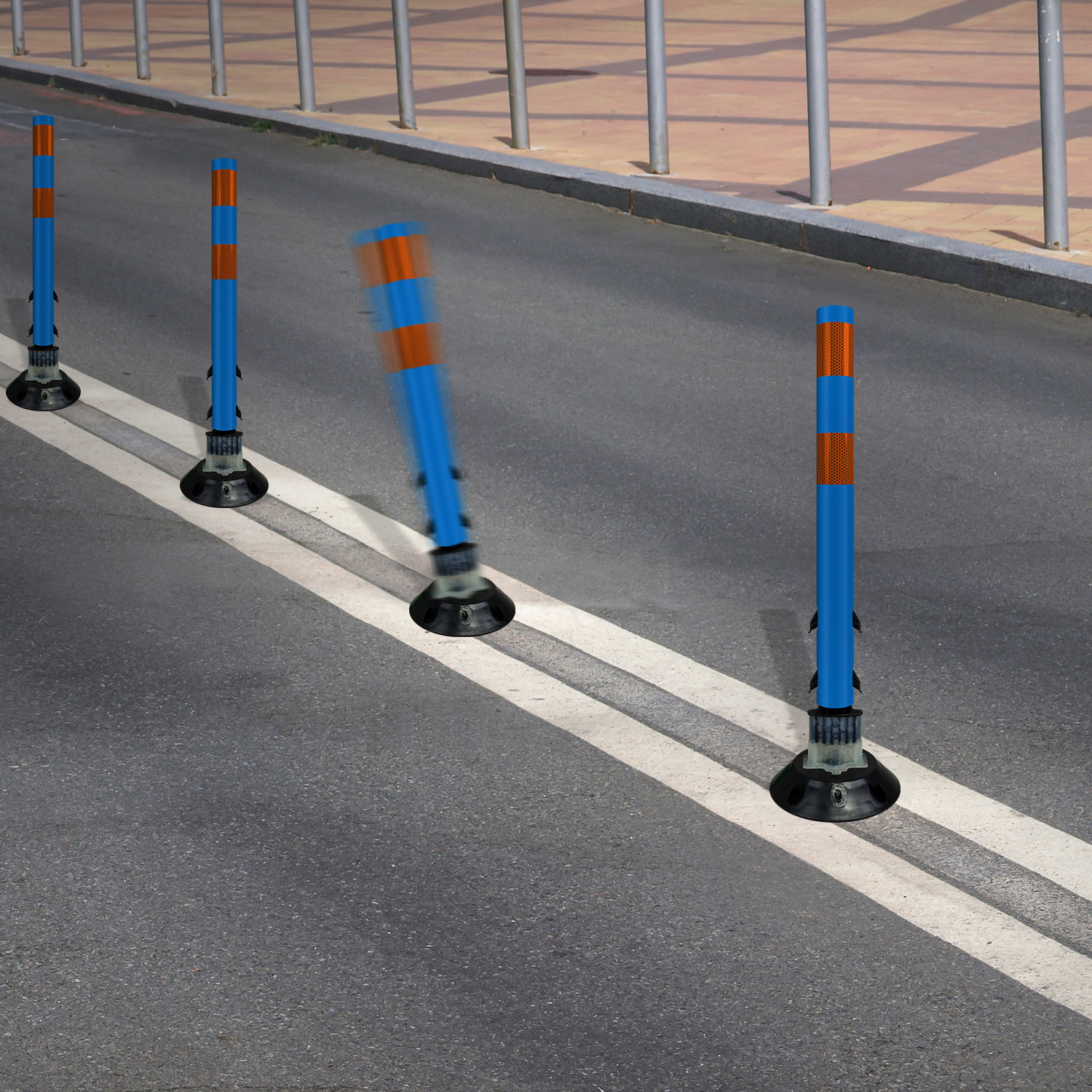

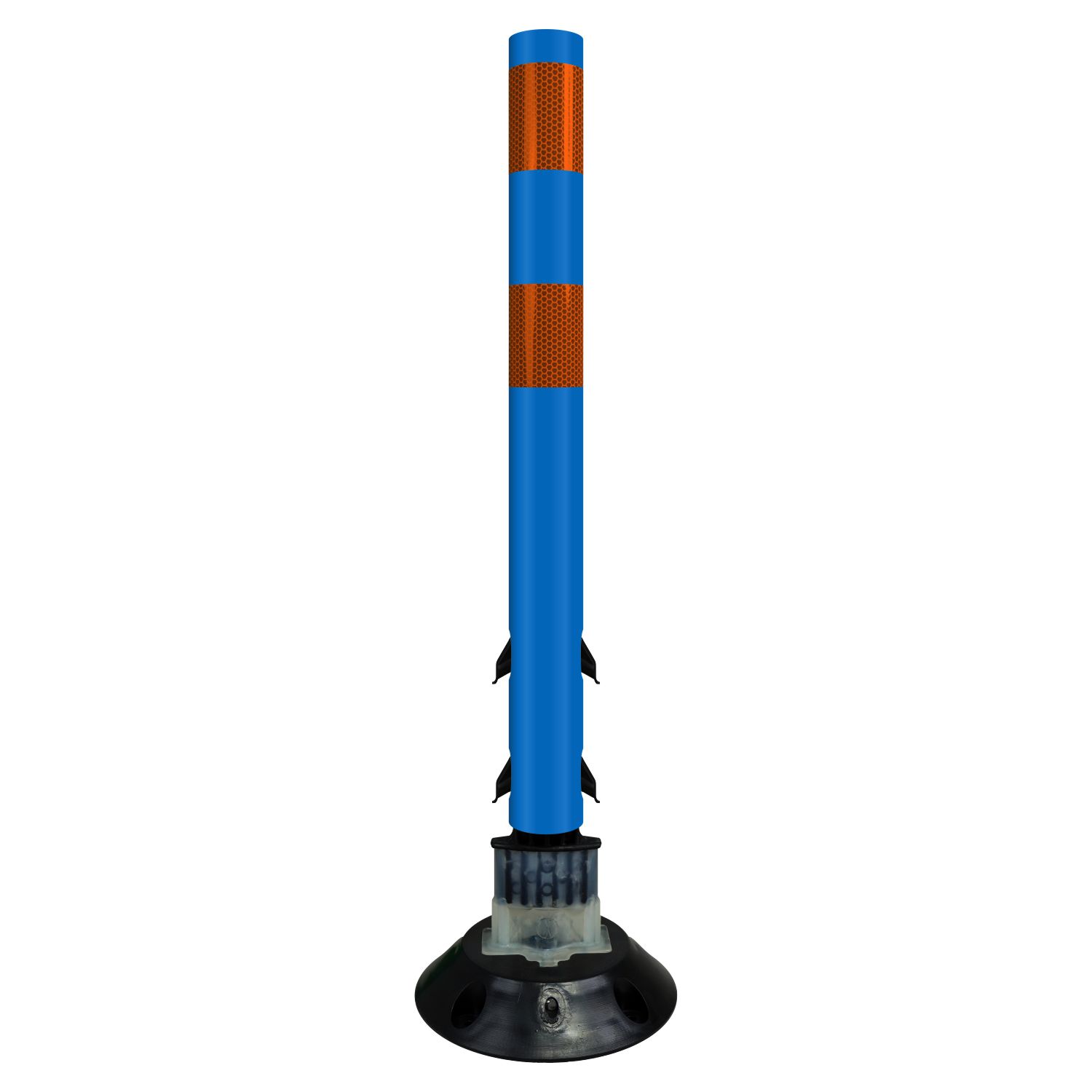

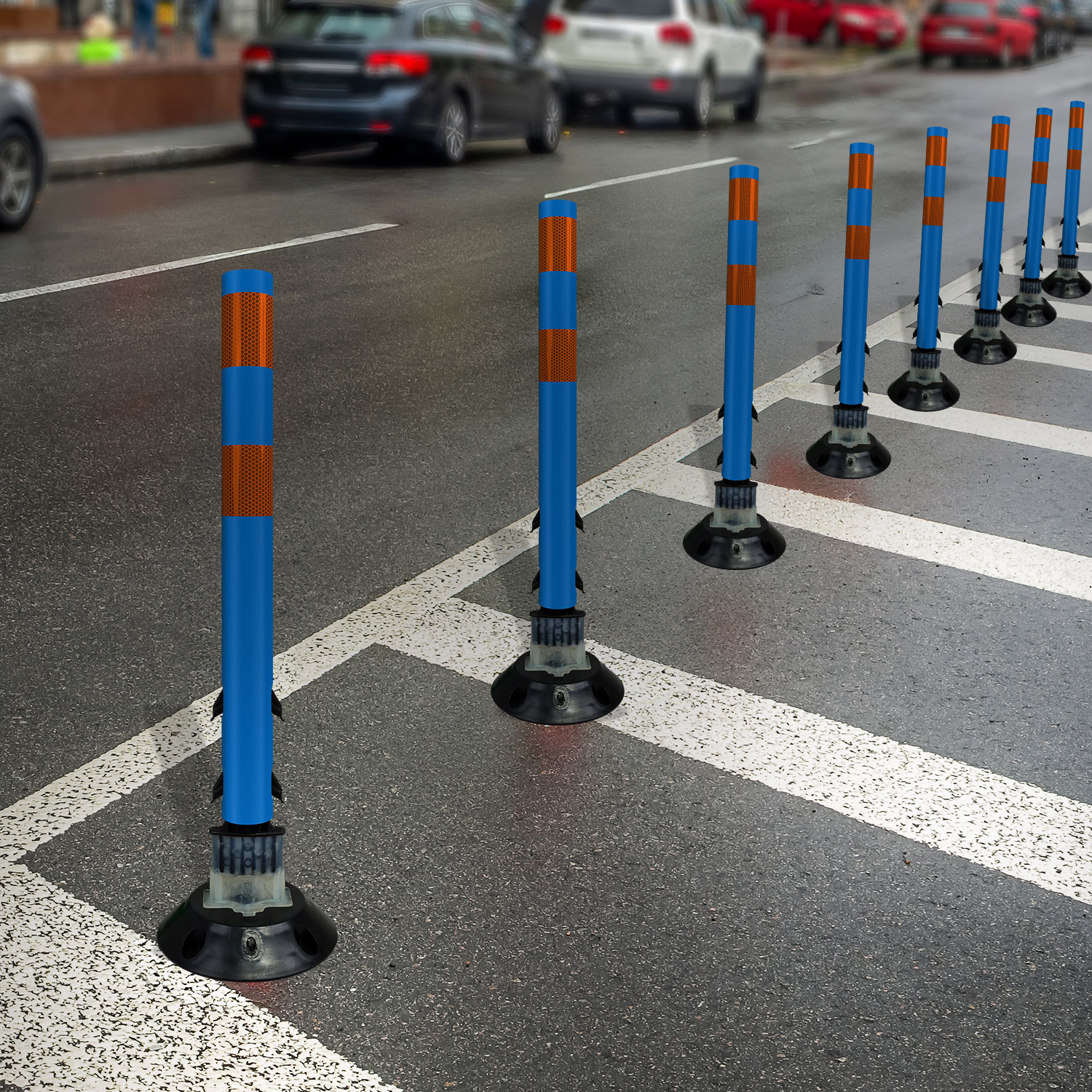

Blue Flexstake Surface Mount Tubular Traffic Delineator

Our Blue Flexstake Surface Mount Tubular Traffic Delineator provides an effective way to manage designated traffic areas while ensuring maximum visibility. Its impact-resistant design flexes upon impact and quickly returns to its upright position, minimizing damage and replacement costs. The bright blue color enhances daytime visibility, while reflective sheeting ensures it remains noticeable in low-light conditions. Designed for fast and secure surface-mount installation, this delineator is ideal for marking handicap zones, restricted areas, and special-use spaces.

• Durable, impact-resistant design for long-lasting performance
• High-visibility blue color with reflective sheeting for increased safety
• Easy surface-mount installation for asphalt and concrete applications
• Suitable for marking handicap-accessible areas, designated zones, and restricted spaces

• Use for clearly marking designated handicap or special-use areas.
• Pair with appropriate signage to reinforce messaging and compliance.
• Regularly check placement and alignment to ensure visibility and effectiveness.

Though suitable as a multi-purpose traffic delineator, the TM 750 Series was specifically designed as a high performance/impact delineator for locations where traffic from side streets would be merging with traffic in a thoroughfare. The TM 750 Series is an impact-resistant tubular surface mounted post that has all the advantages of the internationally acclaimed Flexstake SM 700 Series, plus an enhanced 360 degree visibility.

MTBF: 50 hits at 70 mph (Tested in a 4 ft. model TM 754)

Height: 24" 36" 42" 48"

Weight: Approximately 3 lbs

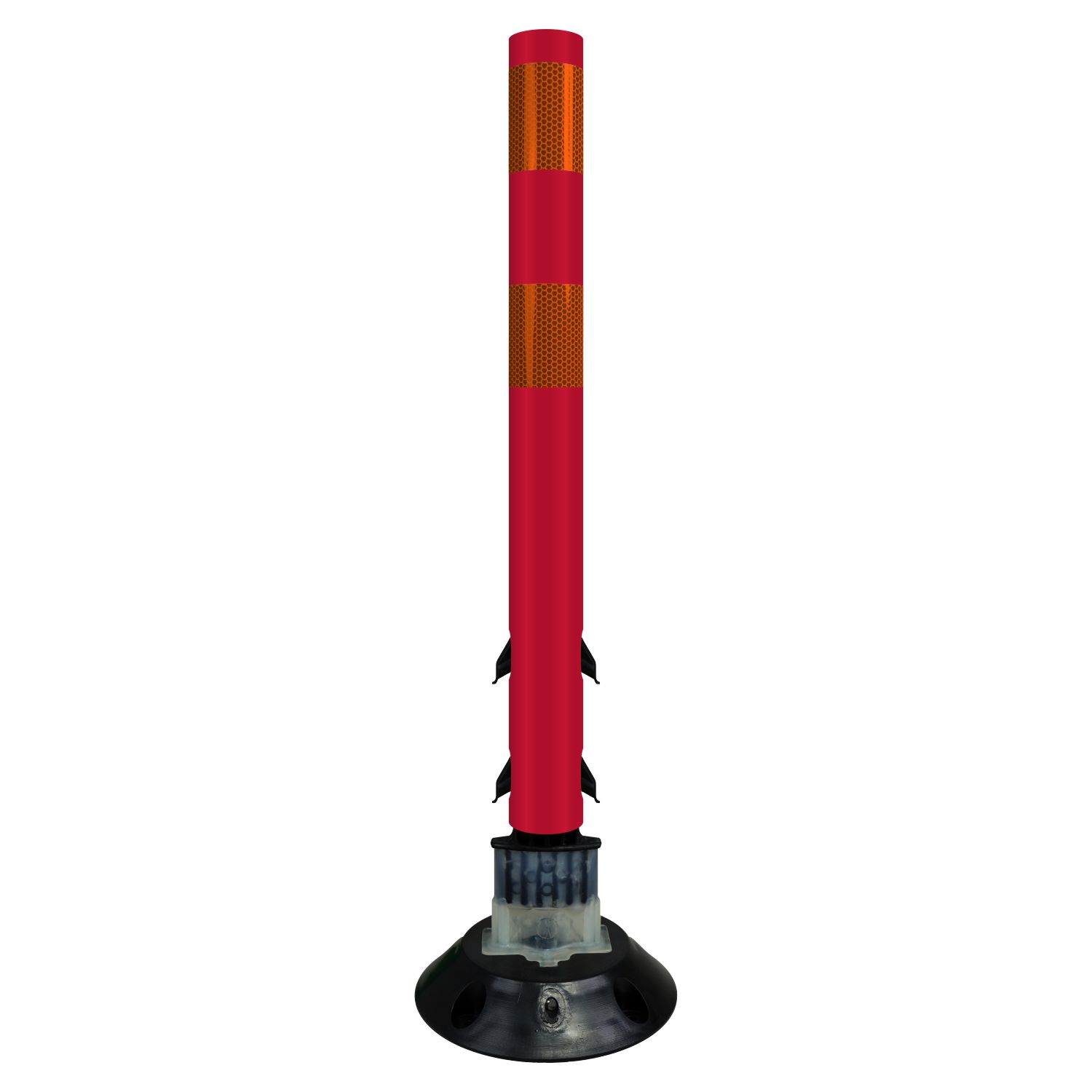

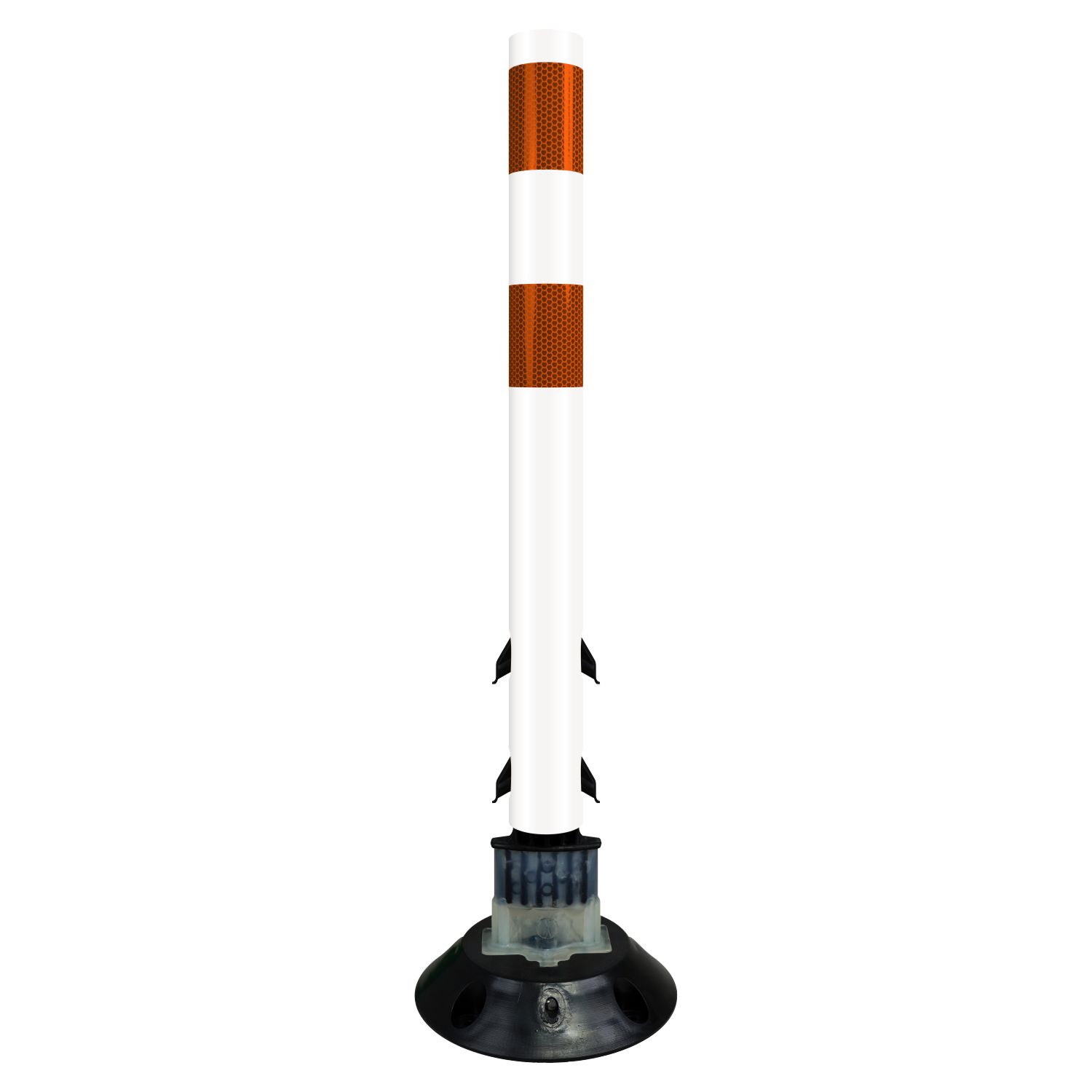

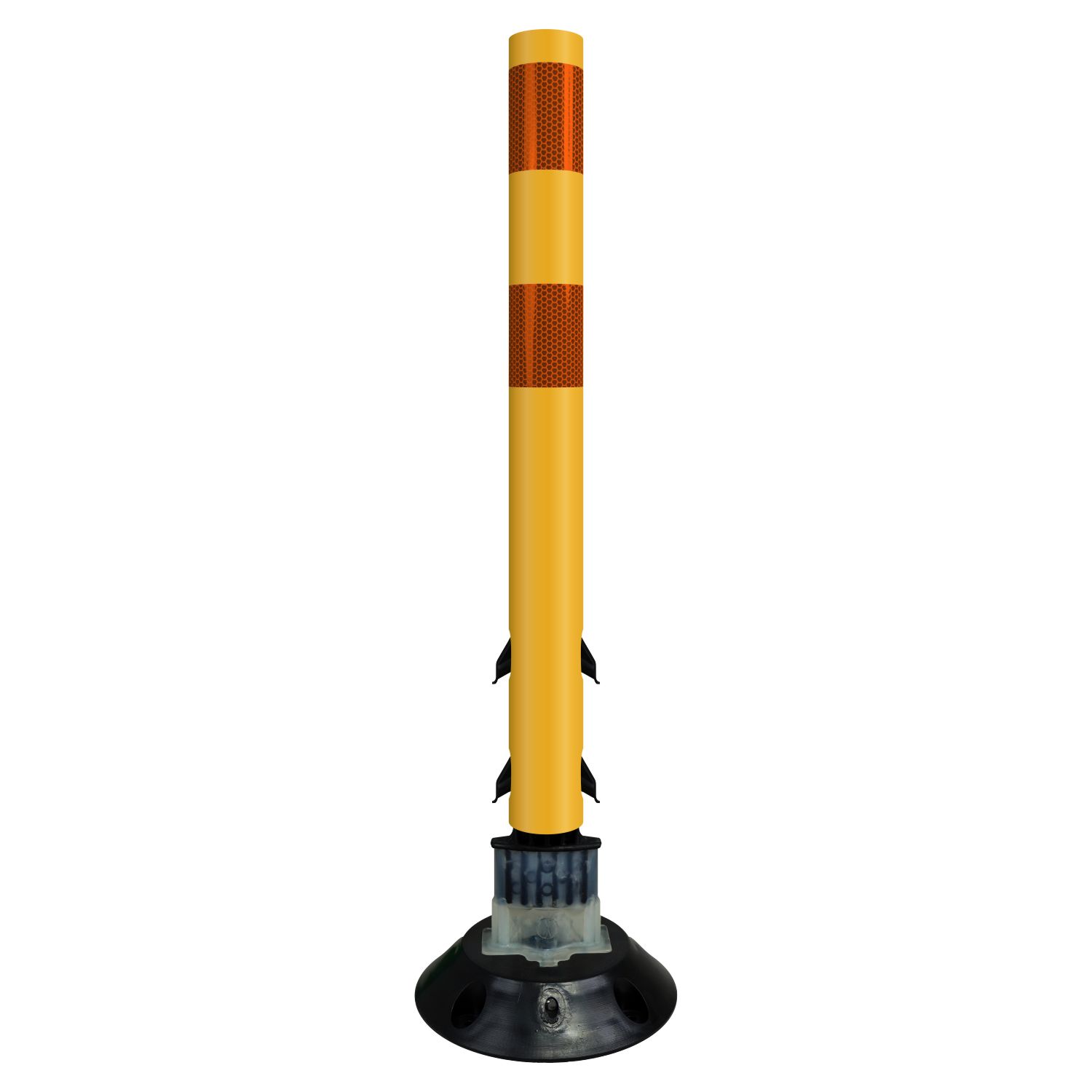

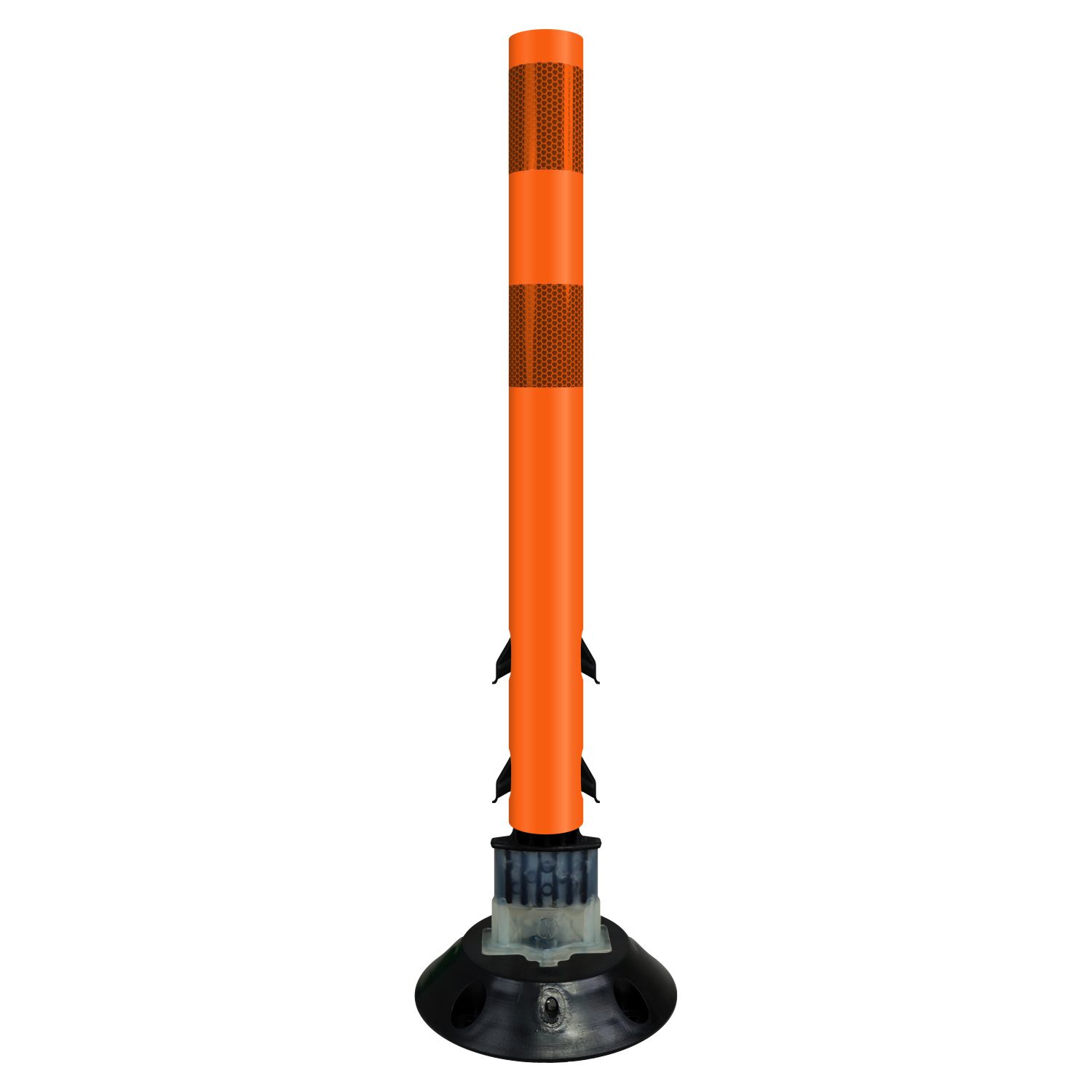

Colors: White, Yellow, Orange, Blue and Red

Custom colors available

Sheeting: As per customer specifications

This is the 750 TM with a narrower Center Line Base (4 1/2" x 12")

The 750 TM CL Series delineator is a four-part assemnbly:

1. Post
2. Inner-core and hinge
3. Base: 4 1/2 inches wide by 12 inches long with FlexStake's patented Mesh Base Technology
4. Pin (pin can be quick release or straight)

1. Position the Base:
   Place the Flexstake base in the desired location and mark the hole pattern on the surface.
2. Drill Holes:
   Using a suitable masonry bit, drill four holes in the asphalt or concrete according to the marked pattern.
3. Clean Holes:
   Remove all dust and debris from the holes using compressed air to ensure proper adhesion.
4. Prepare the Base:
   Insert the selected anchors or screws into the holes in the Flexstake base.
5. Apply Epoxy:
   Fill the drilled holes with a construction-grade epoxy suitable for concrete or asphalt surfaces.
6. Install the Base:
   Slowly press the Flexstake base, with the anchors inserted, into the epoxy-filled holes until fully seated.
7. Allow to Cure:
   Let the epoxy cure according to the manufacturer’s instructions before applying any load or impact to the stake.
