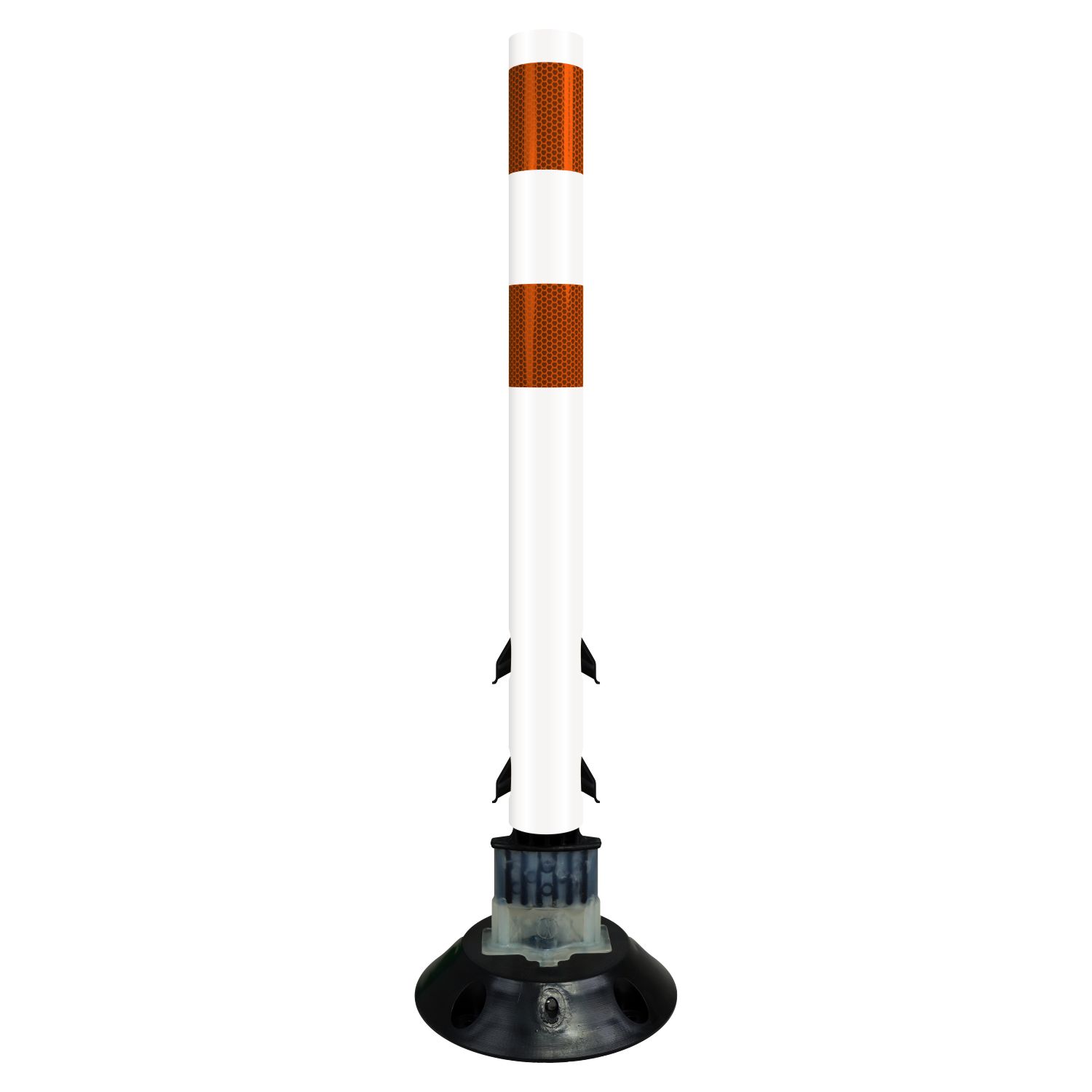

White Flexstake Surface Mount Tubular Traffic Delineator

This White Flexstake Surface Mount Tubular Traffic Delineator is designed to withstand demanding traffic conditions while maintaining high visibility. Its impact-resistant, flexible construction allows it to return to its original position after a collision, ensuring long-term functionality. The bright white finish and reflective sheeting enhance visibility for drivers and pedestrians, making it a reliable choice for lane separation, walkways, and restricted areas. With easy surface-mount installation, this delineator provides a simple yet effective traffic control solution.

• Impact-resistant flexible design rebounds after collisions for extended durability
• Bright white color with high-visibility reflective sheeting for enhanced visibility
• Secure surface-mount installation on asphalt and concrete

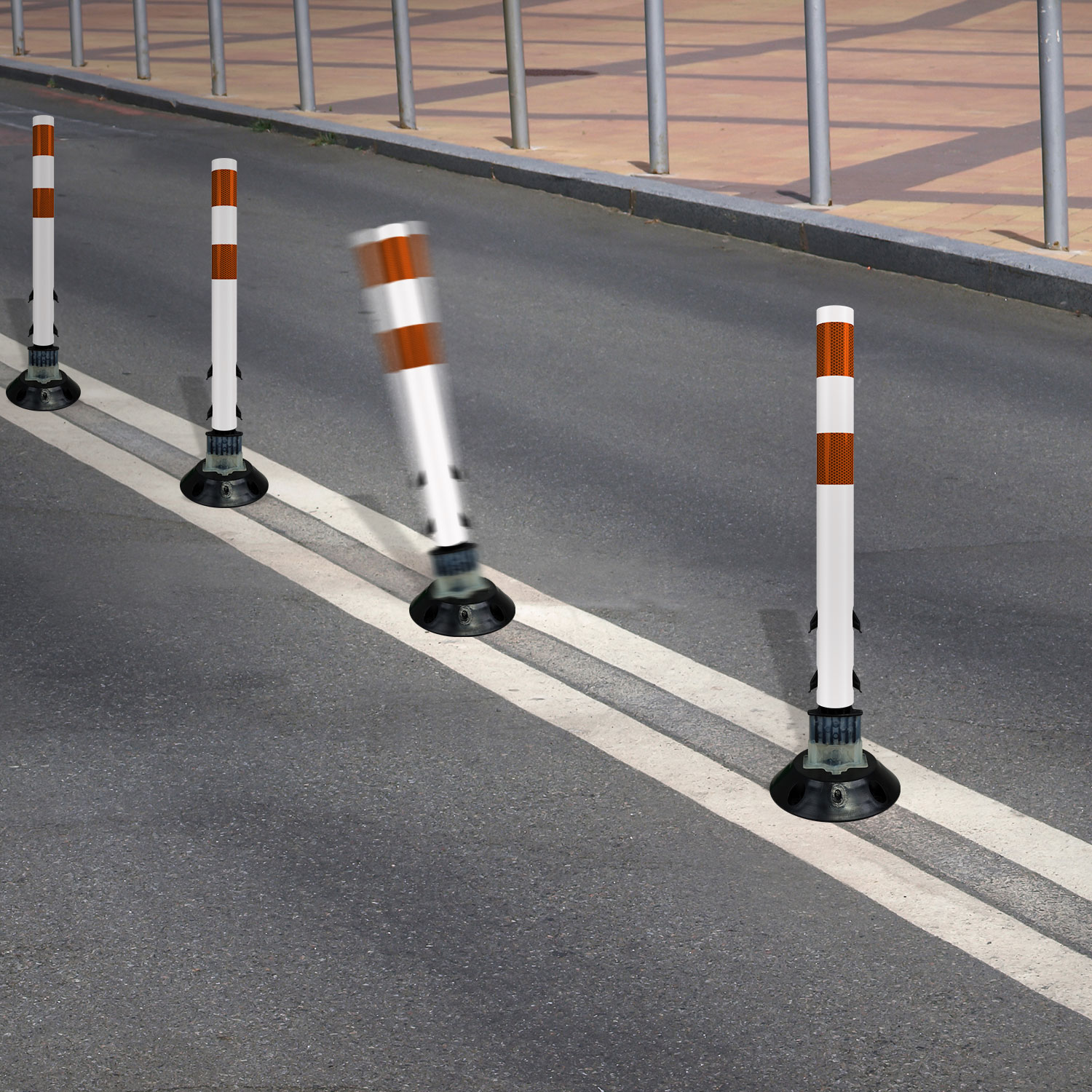

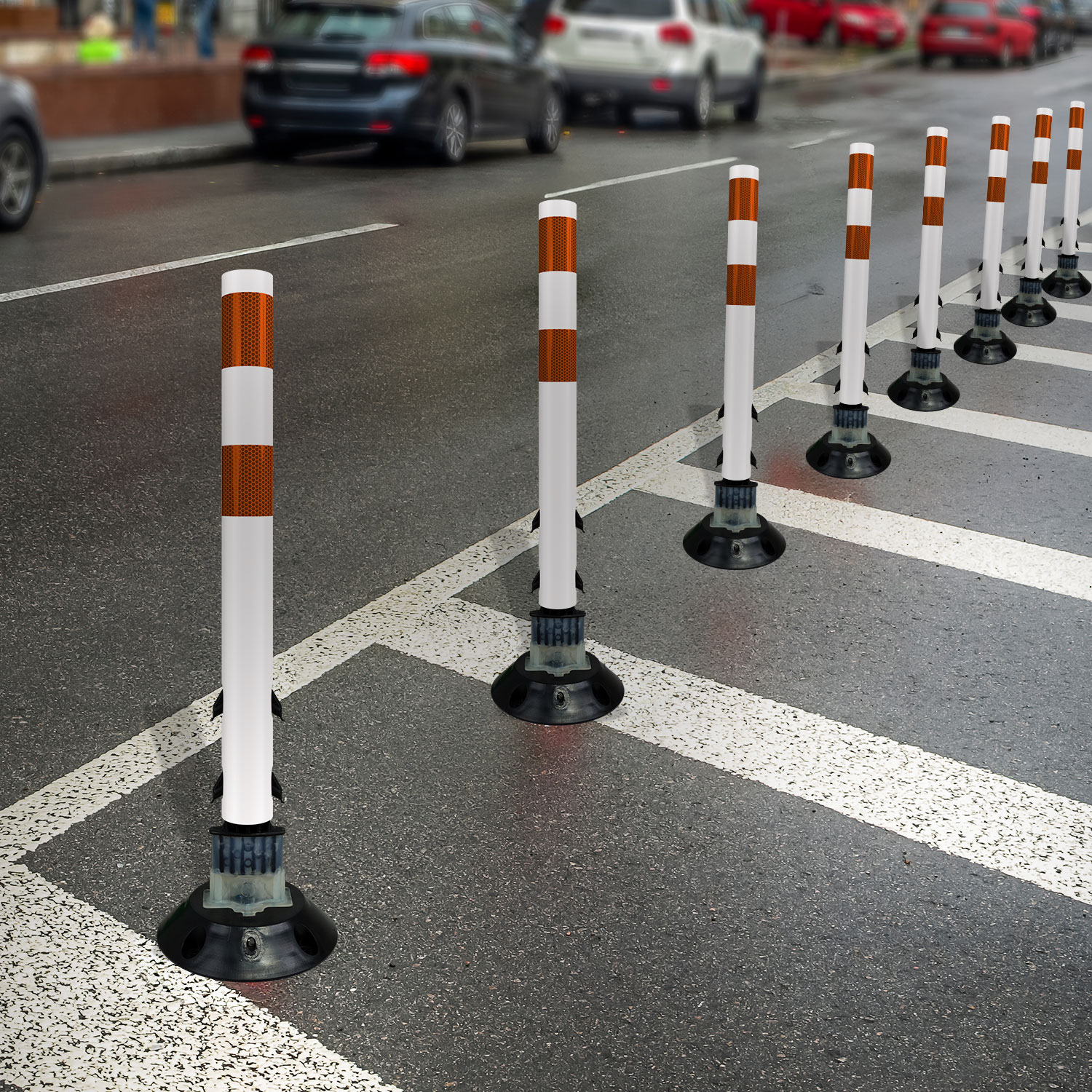

• Ideal for lane separation, pedestrian pathways, and restricted zones

• Position delineators at regular intervals to maintain clear traffic guidance.
• Ensure installation on a clean, dry surface for optimal adhesion and stability.
• Use alongside additional signage for enhanced traffic control in high-risk areas.

Though suitable as a multi-purpose traffic delineator, the TM 750 Series was specifically designed as a high performance/impact delineator for locations where traffic from side streets would be merging with traffic in a thoroughfare. The TM 750 Series is an impact-resistant tubular surface mounted post that has all the advantages of the internationally acclaimed Flexstake SM 700 Series, plus an enhanced 360 degree visibility.

MTBF: 50 hits at 70 mph (Tested in a 4 ft. model TM 754)

Height: 24" 36" 42" 48"

Weight: Approximately 3 lbs

Colors: White, Yellow, Orange, Blue and Red

Custom colors available

Sheeting: As per customer specifications

This is the 750 TM with a narrower Center Line Base (4 1/2" x 12")

The 750 TM CL Series delineator is a four-part assemnbly:

1. Post
2. Inner-core and hinge
3. Base: 4 1/2 inches wide by 12 inches long with FlexStake's patented Mesh Base Technology
4. Pin (pin can be quick release or straight)

1. Position the Base:
   Place the Flexstake base in the desired location and mark the hole pattern on the surface.
2. Drill Holes:
   Using a suitable masonry bit, drill four holes in the asphalt or concrete according to the marked pattern.
3. Clean Holes:
   Remove all dust and debris from the holes using compressed air to ensure proper adhesion.
4. Prepare the Base:
   Insert the selected anchors or screws into the holes in the Flexstake base.
5. Apply Epoxy:
   Fill the drilled holes with a construction-grade epoxy suitable for concrete or asphalt surfaces.
6. Install the Base:
   Slowly press the Flexstake base, with the anchors inserted, into the epoxy-filled holes until fully seated.
7. Allow to Cure:
   Let the epoxy cure according to the manufacturer’s instructions before applying any load or impact to the stake.
