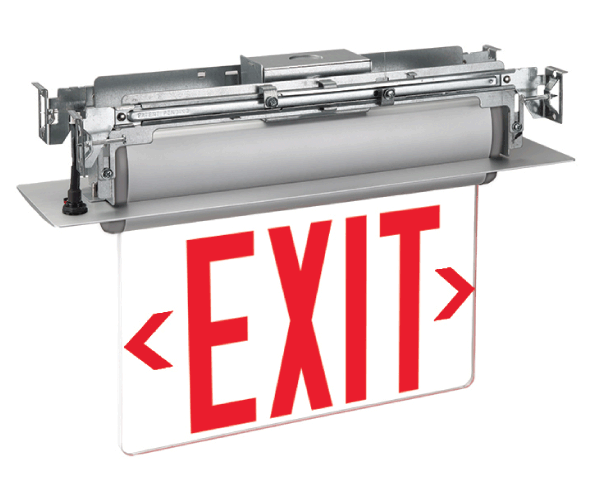

The Edge-Lit LED Exit Sign with Swivel Mount - NiCad Battery Power features an adjustable mount and dependable battery backup, ensuring bright red exit illumination even during power outages. Constructed from durable materials, this sign remains effective.
This sign must be hardwired to a 120V or 277V circuit. The primary circuit charges the NiCad battery when normal power is supplied. In the event of a power failure, the battery activates to provide illumination for the Exit sign.
FEATURES & BENEFITS
- Suitable for installation in existing drywall applications
- Includes both single- and double-face panel configurations
- Includes surface mounting canopy as well as bracket for recessed mounting applications
- UL 924 Listed 90 minute emergency run time, 24 hour recharge time
- Field-selectable directional chevrons
- UL Listed for Damp Locations
- California Energy Commission (CEC) compliant
ILLUMINATION
- Long-life, high-intensity, red or green LEDs
CONSTRUCTION
- Extruded aluminum housing with high-grade, acrylic panel
RUN TIME
- UL Listed 90 minute emergency run time, 24 hour recharge time
INPUT
- 120/277VAC Dual Primary, 60Hz
MOUNTING
- Ceiling and end surface mounting or recessed
FINISH
- Brushed aluminum, black or white
CONFORMANCE TO CODES & STANDARDS
- UL Listed for Damp Locations, meets or exceeds CEC, NEC and NFPA 101
WARRANTY
- Any component that fails due to a manufacturing defect is guaranteed for five years with a separate three year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information.
