White AC Only Thermoplastic Field-Switchable Red/Green LED Exit Sign
Item #
E7315-Q2AC
Sign Reads
Exit
Compliance
UL Listed for Damp Locations and meets or exceeds the following: UL 924, CEC, NEC requirements and NFPA 101.

Note:

This sign requires hardwiring to a 120V or 277V circuit for operation and is compatible with remote emergency power sources, such as a generator or inverter.

White AC Only Thermoplastic Field-Switchable Red/Green LED Exit Sign

Color

Size:

Material:

Laminate:

Mounting:

Packaging:

Price:
$33.29
Low Price Guarantee

Your item has been added to cart.

0 In Stock
Special freight arrangements are necessary.

Need a quote for a large order? Call 973‑405‑2672.

Product Information

Details

This White AC-only Thermoplastic Field-Switchable Red/Green LED Exit Sign is designed for efficiency and flexibility. It offers adjustable red or green illumination to suit your specific needs. Built with durable thermoplastic and powered by an AC-only connection, it delivers consistent, dependable performance in high-traffic areas.

FEATURES & BENEFITS
  • Ultra-compact, low-profile design

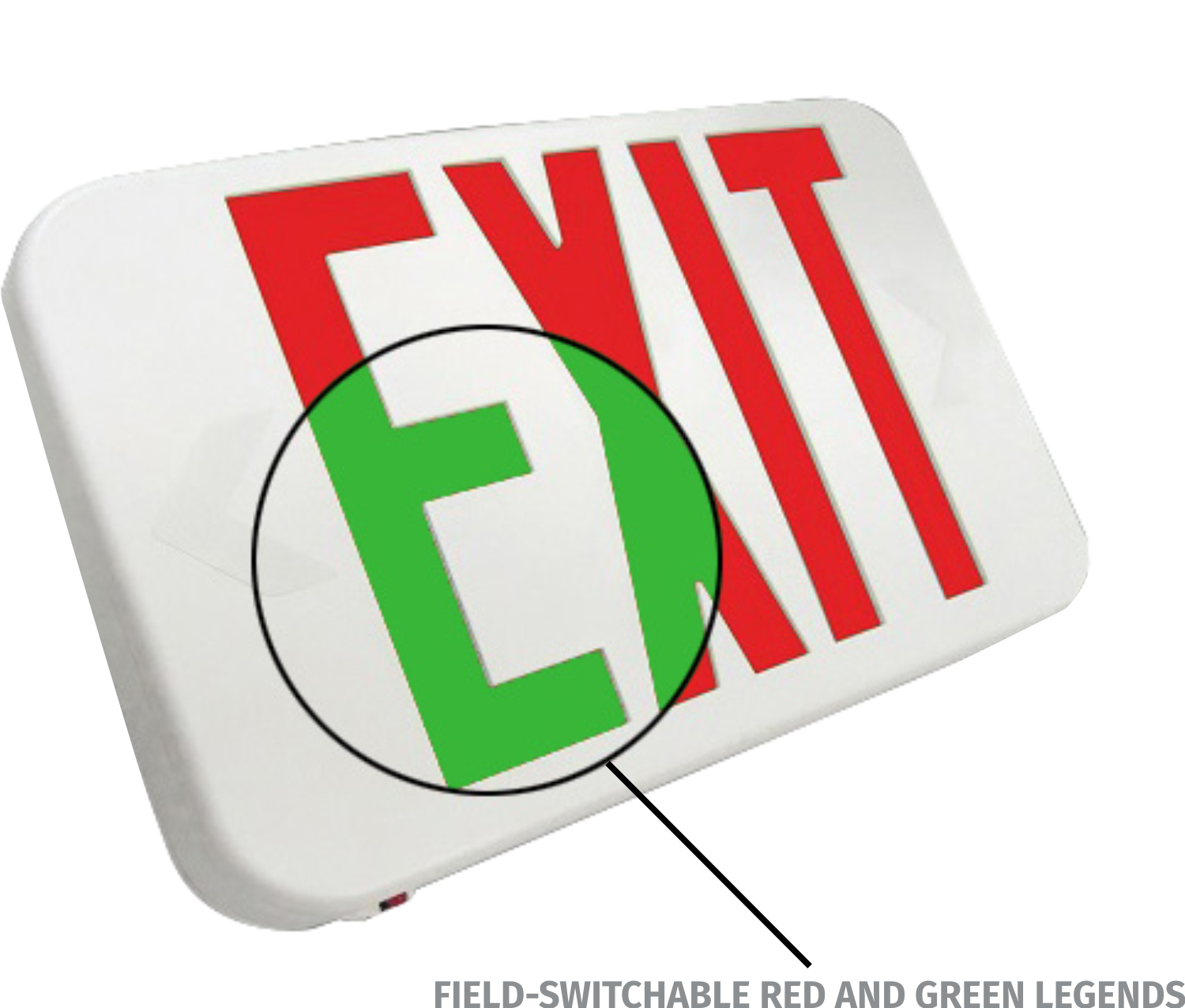

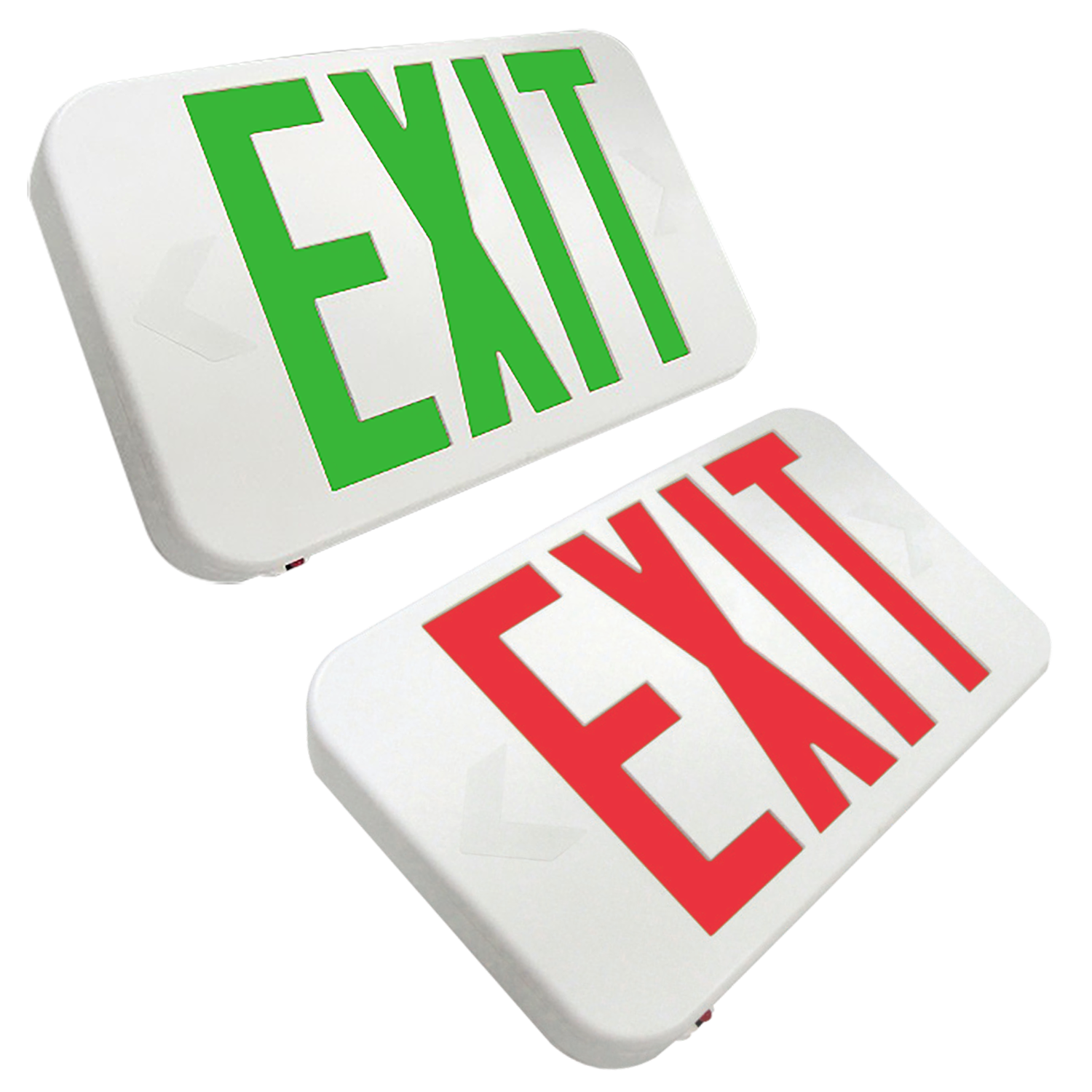

  • Field-switchable red or green legend by toggling the interior dip switch
  • Easy to install, snap together design
  • Universal style - includes two (2) face plates with red and green diffusers, a back plate and mounting canopy
  • California Energy Commission (CEC) compliant
ILLUMINATION
  • Constant, uniform illumination by long-life, high intensity, red or green field-switchable LEDs
HOUSING
  • Rugged, injection-molded UL 94 5VA flame retardant, high-temperature thermoplastic housing
ELECTRICAL
  • Brownout circuit protection
RUN TIME
  • UL listed 90 minute emergency run time, 24 hour recharge time
INPUT
  • 120/277V dual primary, 60Hz input
LEGEND
  • Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons included for all configurations, includes red and green diffusers
MOUNTING
  • Flexible mounting, includes snap-on canopy for top or end mount
FINISH
  • White
CONFORMANCE TO CODES & STANDARDS
  • UL Listed for Damp Locations and meets or exceeds the following: UL 924, CEC, NEC requirements and NFPA 101
WARRANTY
  • Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions apply)
