We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.

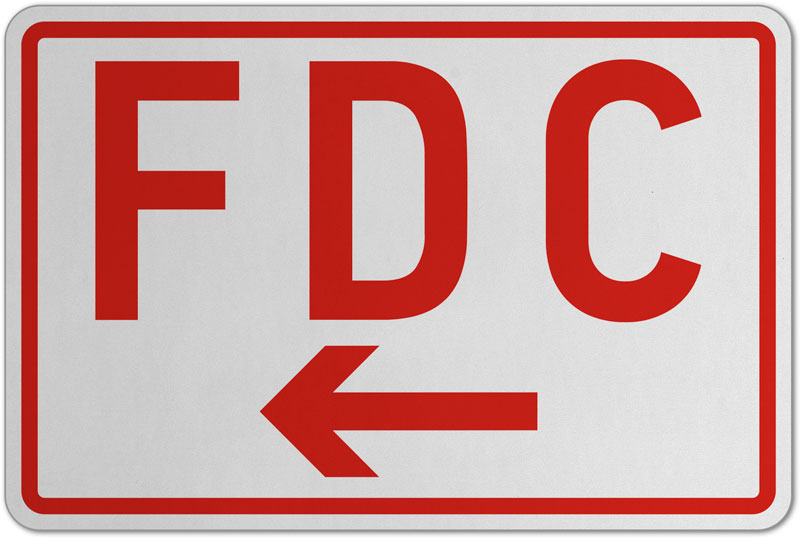

FDC (Left Arrow) Sign
- Item #:
- 25705
- Sign Reads:
- FDC
- Sign Design:
- Text 6" High With 1" Stroke And 3.5" High Left Arrow
- Compliance:
-
- International Fire Code § 912
- OSHA 1910.1200(c)
- Shipping Declarations
Other configurations of this product
A FDC (Left Arrow) Sign has fire department connection messages for emergency response protocol and compliance. A FDC (Left Arrow) Sign is a helpful resource to help protect the health and safety of personnel, and is not a substitute for required protective measures for reducing or eliminating hazards.
FDC
|
18 × 12″
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Overlaminate | Mounting Holes | Sku | Quantity/Price | |||||||
|
|||||||||||
| 6 Mil Peel and Stick Engineering Grade Reflective Vinyl Label | None | None | 25705-R6EG | $9.95 | $9.45 | $8.95 | $8.45 | $7.75 | $6.95 | ||
| .063″ Engineering Grade Reflective Aluminum | None | Four ¼″ holes (one in each corner) | 25705-B6D | $22.95 | $21.45 | $20.45 | $19.95 | $18.95 | $17.25 | ||
| .063″ High Intensity Prismatic Reflective Aluminum | None | Four ¼″ holes (one in each corner) | 25705-R6P | $29.60 | $26.35 | $23.88 | $21.20 | $17.20 | $15.50 | ||
|
18 × 12″
|
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Overlaminate | Mounting Holes | Sku | Quantity/Price | |||||||||
|
|||||||||||||
| .063″ High Intensity Prismatic Reflective Aluminum | None | No holes; foam tape strips provided for surface mounting | 25705-R6P-0AR | $37.10 | $32.25 | $30.85 | $29.70 | $27.00 | $22.50 | $21.20 | |||
| .063″ High Intensity Prismatic Reflective Aluminum | Premium Anti-Graffiti Film | No holes; foam tape strips provided for surface mounting | 25705-R6P-0ARG | $44.90 | $40.25 | $40.05 | $37.90 | $35.40 | $31.15 | $29.20 | |||
| .063″ High Intensity Prismatic Reflective Aluminum | None | Two ⅜″ holes (one at top, one at bottom) | 25705-R6P-2WV | $37.10 | $32.25 | $30.85 | $29.70 | $27.00 | $22.50 | $21.20 | |||
| .063″ High Intensity Prismatic Reflective Aluminum | Premium Anti-Graffiti Film | Two ⅜″ holes (one at top, one at bottom) | 25705-R6P-2WVG | $44.90 | $40.25 | $40.05 | $37.90 | $35.40 | $31.15 | $29.20 | |||
| .063″ High Intensity Prismatic Reflective Aluminum | Premium Anti-Graffiti Film | Four ¼″ holes (one in each corner) | 25705-R6P-G | $42.90 | $38.25 | $37.05 | $35.90 | $33.40 | $29.15 | $27.20 | |||
Special Freight Arrangement:
Due to the size of this product, freight shipping will be required. You may contact our customer service team for a quote or you can place your order and a customer service representative will contact you about freight shipping charges.
If you would like to use your own freight carrier, please include your freight carrier account in the special instructions box at the bottom of the checkout page before placing your order. A customer service representative will be in contact with you if there are any questions.
Phone: 800-274-6271
Fax: 800-279-6897
Phone: 800-274-6271
Fax: 800-279-6897
SafetySign.com guarantees that we have the lowest price on every item we manufacture, plain and simple.
If you find a lower price, we'll match it!
Material Specifications:
Outdoor Durability:
Reflectivity:
Service Temp Range:
Max Recommended
Viewing Distance*
Viewing Distance*
Up To
Please see Size Tab below for more details.
* Under favorable viewing conditions.
* Under favorable viewing conditions.
Recommended Accessories
- All
- Brackets
- Cones
- Foam Bumpers
- Hardware
- Tape
- Ties
- Tools
8" Long Heavy Duty Nylon Ties
NT8
7.5″ Black UV Resistant Cable Tie - 50 lb Tensile Strength
NT7
SignGuardian™ Tamper-Resistant 2" Chain Link Fence Brackets for 7/32” or 1/4" Mounting Holes
Y4963, Y4962
Screwdriver for SignGuardian™ and 1-Way R™ Bolts
Y4965
#10 x 1-1/2" Round Head Screw for Wood
Y4999
3/16 x 1-1/2" Bolting Set (2 bolts, 2 nuts, 4 washers)
Y4997
Corner Foam Bumper
R5600
I-Beam Edge Foam Bumper
R5601
Flat Surface Foam Bumper
R5602
Corner Protector For Foam Bumper
R5604
42" Cone with Reflective Bands and 16lb. Base
X5653
Suction Cups with Hook For Sign Hanging
Y3548
Double-Sided Adhesive Foam Tape
Y3549
Wing Bracket
Y3539
5/32" Cushioned T-Handle Hex Key
Y3522
5/32" L-Handle Hex Key
Y3523
L-Handle Hex Key For Vandal Resistant Set Screws
Y3524
5/32" Hex Bit For Vandal Resistant Set Screws
Y3525
Vandal Resistant Set Screws
Y3526
30" Silver Yard Sign Stake
Y4995
Frequently Purchased Together
White / Red NJ Floor / Roof Truss Sign
NJTRUSS-06
Fire Alarm Sign
A5315
FDC (Fire Department Connection) Sign Specifications
Fire department connections should be identified by a permanent approved sign which must have the letters FDC at least 6" high with 1" stroke in either red text on white or white text on a red background.
Signs are required to be on a retro-reflective material with retro-reflective letters, in other words signs need to be reflective, we sell these signs in Engineering Grade (Type I) Reflective Aluminum.
FDC signs indicating the building address, building name, directional arrow or any other copy which indicates property being served by the connection should be 2" high.
SafetySign.com does not recommend or specify the use of a specific safety sign because it does not have knowledge of the hazard(s) our customers are identifying. It is the customer’s sole responsibility to identify the hazard(s) that may be present and select one or more signs (stock or custom) that accurately identify their specific hazard(s) and complies with any applicable federal, state or local laws or regulations, any worksite specific rules or regulations and/or any applicable safety standards (including, without limitation, ANSI and/or OSHA standards). SafetySign.com disclaims any and all liability (excluding liability for our Product Warranty contained in our Terms and Conditions) for any sign selected by a customer and shall not be responsible for any personal injury or property damage resulting from the use of signs purchased from it or for the independent interpretation made of any applicable federal, state or local laws or regulations, any worksite specific rules or regulations, and/or any applicable safety standards (including, without limitation, ANSI and/or OSHA standards). Customer shall indemnify and hold SafetySign.com and its corporate parent and its officers, directors and affiliates harmless from and against any and all claims, loss or expense (including attorneys’ fees) arising from or related to the purchase and use by customer or any third party of any sign purchased by customer from SafetySign.com.
Which Size Sign Should I Choose?
The FDC (Left Arrow) Sign is available in the size listed in the table below. We offer this size because it allows for the text size to meet the minimum requirements of the International Fire Code. Use the information in the table to help you determine if the size of this FDC (Left Arrow) Sign will meet your needs.
![]()
| Size | Width | Height | Average Text Size |
Max Viewing Distance |
Available Materials | Mounting Holes | Corner Radius | Diagram |
|---|---|---|---|---|---|---|---|---|
| 18 × 12″ | 18″ | 12″ | 6″ | Up to 150′ |
|
None | ½″ | N/A |
|
Four ¼″ Holes (#12 or 7/32″ screws recommended) | ½″ | Diagram | |||||
|
Two ⅜″ Holes | 1 ½″ | Diagram | |||||
| No Holes; Foam Tape Strips Included | ½″ | Diagram | ||||||
| Four ¼″ Holes (#12 or 7/32″ screws recommended) | ½″ | Diagram |
The viewing distances listed in this chart reflect the maximum viewing distance for the sign under favorable viewing conditions.
Favorable viewing conditions are those which allow for a clear, unobstructed view of the message on the sign. Examples of favorable viewing conditions are a bright lighting source over the sign, clear weather conditions, and a clear line of sight with no obstructions blocking the view of the sign from certain angles and no other nearby signs creating distractions.
In unfavorable conditions, the sign is viewable at up to half the favorable distance. Unfavorable viewing conditions are those which make it difficult to read the message of the sign. Examples of this are poor lighting such as a dimly lit room, obstructions blocking the view of the sign from certain angles, poor weather conditions, and other signs posted nearby which create a distraction.
It is the responsibility of the end user to determine the correct size, viewing distance, sign positioning, and sign size for your specific hazard. According to the ANSI Z535.2 sign standard, a ratio of 25 feet of viewing distance per inch of text height, under favorable viewing conditions, should be used to determine the size of your sign. Under unfavorable viewing conditions, such as in low light or for signs with complex messages, the ratio of viewing distance to text height is 12.5 feet to 1 inch.
| Material | Thickness | Outdoor Durability | Service Temp. Range | Available Sizes |
Overlaminate |
|---|---|---|---|---|---|
| Labels | |||||
|
Engineering Grade Reflective Vinyl
A durable enclosed lens retro-reflective material permanently adhered to aluminum. It is an economical choice for non-critical traffic signs, safety signs, and emergency related signs. The pattern free face allows for clean graphic imaging. It meets the requirements of ASTM D4956 Type I, and will remain effective for up to 7 years. Resistant to fading and mild chemicals. Clean and dry surface before applying.
Reflectivity:
|
6 mils | Up to 7 Years | -10°F - 130°F |
|
|
| Aluminum | |||||
|
Engineering Grade Reflective Aluminum
A durable enclosed lens retro-reflective material permanently adhered to aluminum. It is an economical choice for non-critical traffic signs, parking lot signs, and safety signs. The pattern free face allows for clean graphic imaging. It meets the requirements of ASTM D4956 Type I, and will remain effective for up to 7 years. Resistant to fading and mild chemicals.
Reflectivity:
|
0.063″ | Up to 7 Years | -10°F - 130°F |
|
|
|
High Intensity Prismatic Reflective Aluminum
A microprismatic retro-reflective sheeting permanently adhered to aluminum that provides a high level of retroreflectivity, and meets the requirements of ASTM D4956 Type IV. It is 3 to 4 times brighter than standard Engineering Grade sheeting, and will remain effective for up to 10 years.
Reflectivity:
|
0.063″ | 7 to 10 Years | -10°F - 130°F |
|
|
| None | Engineering Grade | High Intensity Prismatic | Diamond Grade | |
|---|---|---|---|---|
| ATSM D956 Type | – | Type I | Type IV | Type IX |
| Brightness | – | Standard Material | 3x More | 10x More |
| Night-Time Visibility | – | 500' | 1,000' | 1,500' |
| Reflectivity |
|
|
|
|
This FDC (Left Arrow) Sign is printed with the latest digital printing practices, which reduce set-up times and allows SafetySign.com to ship out faster than competitors. These advanced printing processes also eliminate set-up charges and order minimums. At SafetySign.com, we print your text and graphics with UV inks directly to the substrate, without lamination. Your text and graphics won't peel, unlike a FDC (Left Arrow) Sign from companies that laminate graphics over the sign material.
Printing Methods
Cross-Hatch Ink Adhesion Test
SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.
We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.
Fonts
The text is printed in Din Alternate and PF Din Cond Pro Medium fonts.
The FDC (Left Arrow) Sign from SafetySign.com uses this font because legibility at a distance is superior with this font than with others. The text on this sign is 6 inches in height on the 18 x 12" size which complies with International Fire Code (IFC) requirements. The text also has a 1 inch text stroke width, which allows it to be compliant with fire department requirements that call for a specified text stroke width.
