Yield Sign - X4540, Yield Signs by SafetySign.com

Yield Sign

MUTCD R1-2
Yield Sign
Item #:
X4540
Sign Reads:
Yield
Compliance:
  • MUTCD
Other configurations of this product
Learn More Size:
Learn More
Material:
  •
  •
  •
Overlaminate:
Mounting Holes:
Packaging:
Pricing See Complete Pricing Tables X4540-D7H
Quantity
Price Each:
1–2
$25.90
3–4
$25.65
5–9
$25.40
10–19
$24.65
20–39
$23.90
40+
$23.20
Need a quote for a large order? Call 800-274-6271 or .
Qty:
Total Price: $25.90
Guaranteed Lowest Price
✓ Added to Cart
99% on-time shipping. Call 800-274-6271 for large orders or expedited shipping. Orders ship when all your items are ready. Shipping options and delivery dates available at checkout.
Special freight arrangements are necessary. Learn more
An MUTCD compliant Yield Sign is a useful tool to help display official regulations and to provide mandatory information to drivers and pedestrians on public roadways, private drives, and in parking lots.
Yield
18″ Triangle
Material Overlaminate Mounting Holes Sku Quantity/Price
1–2 3–4 5–9 10–19 20–39 40+
.080″ Engineering Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T1H $18.45 $18.20 $17.70 $17.15 $16.65 $16.15
.080″ High Intensity Prismatic Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T1J $19.75 $19.50 $19.25 $18.65 $18.10 $17.55
.080″ Diamond Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T1K $29.65 $29.15 $28.65 $27.80 $26.95 $26.15
24″ Triangle
Material Overlaminate Mounting Holes Sku Quantity/Price
1–2 3–4 5–9 10–19 20–39 40+
.080″ Engineering Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T2H $18.75 $18.55 $18.30 $18.10 $17.55 $17.00
.080″ High Intensity Prismatic Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T2J $23.70 $23.55 $23.25 $22.90 $22.20 $21.55
.080″ Diamond Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-T2K $31.90 $31.65 $31.40 $30.45 $29.55 $28.65
30″ Triangle
Material Overlaminate Mounting Holes Sku Quantity/Price
1–2 3–4 5–9 10–19 20–39 40+
.080″ Engineering Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-D7H $25.90 $25.65 $25.40 $24.65 $23.90 $23.20
.080″ High Intensity Prismatic Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-D7J $31.90 $31.65 $31.40 $30.45 $29.55 $28.65
.080″ Diamond Grade Reflective Aluminum None Two ⅜″ holes (one at top, one at bottom) X4540-D7K $43.00 $42.90 $42.85 $41.55 $40.30 $39.10
Special Freight Arrangement: Due to the size of this product, freight shipping will be required. You may contact our customer service team for a quote or you can place your order and a customer service representative will contact you about freight shipping charges. If you would like to use your own freight carrier, please include your freight carrier account in the special instructions box at the bottom of the checkout page before placing your order. A customer service representative will be in contact with you if there are any questions.

Phone: 800-274-6271
Fax: 800-279-6897
SafetySign.com guarantees that we have the lowest price on every item we manufacture, plain and simple.
If you find a lower price, we'll match it!
Material Specifications:
Outdoor Durability:
Reflectivity:
Service Temp Range:
Max Recommended
Viewing Distance*
Up To
Please see Size Tab below for more details.
* Under favorable viewing conditions.
Recommended Accessories
  • All
  • Brackets
  • Hardware
  • Post Bases
  • Posts
  • Tools
Prev
Green Enamel and Galvanized U-Channel Posts

Green Enamel and Galvanized U-Channel Posts

Y3433, Y3434, Y3435, Y3436

U-Channel Post Kit - Green Enamel and Galvanized

U-Channel Post Kit - Green Enamel and Galvanized

Y3433-B, Y3434-B, Y3436-B

Green Enamel Breakaway Safety Splice Kit

Green Enamel Breakaway Safety Splice Kit

Y4987

Galvanized Breakaway Safety Splice Kit

Galvanized Breakaway Safety Splice Kit

Y4991

Galvanized Square Sign Post

Galvanized Square Sign Post

Y3536, Y3537

Galvanized Square Anchor Post

Galvanized Square Anchor Post

Y3538

Bolting Set (2 bolts, 2 nuts, 4 washers)

Bolting Set (2 bolts, 2 nuts, 4 washers)

Y4931, Y4899, Y3465

Tamperproof Set (2-bolts, 2-nuts, 4-washers)

Tamperproof Set (2-bolts, 2-nuts, 4-washers)

Y4900, Y4901, Y3551

3" Ribbed Aluminum Sign Saver Plates

3" Ribbed Aluminum Sign Saver Plates

Y4915

Adjustable Large Round Post Bracket

Adjustable Large Round Post Bracket

Y3466

U-Channel Post Tamperproof Sign Mounting Hardware

U-Channel Post Tamperproof Sign Mounting Hardware

Y4903

Fence Mounting Bracket - Ribbed Aluminum Plates

Fence Mounting Bracket - Ribbed Aluminum Plates

Y3554

Tamper-Resistant 2" Chain Link Fence Brackets for 3/8” Mounting Holes

Tamper-Resistant 2" Chain Link Fence Brackets for 3/8” Mounting Holes

Y4904

Tamper-Resistant SignGuardian™ Chain Link Fence Bracket

Tamper-Resistant SignGuardian™ Chain Link Fence Bracket

Y4961, Y4960

2-3/8'' Galvanized Round Post

2-3/8'' Galvanized Round Post

Y3440, Y3425, Y3426

2-3/8'' Round Post Sign Bracket For 1 Sign

2-3/8'' Round Post Sign Bracket For 1 Sign

Y3457

2-3/8'' Round Post Sign Bracket For 2 Signs Back to Back

2-3/8'' Round Post Sign Bracket For 2 Signs Back to Back

Y3458

Screwdriver for SignGuardian™ and 1-Way R™ Bolts

Screwdriver for SignGuardian™ and 1-Way R™ Bolts

Y4965

One Way Bolts

One Way Bolts

Y4911TB, Y4912TB, Y3552

5/16" Zinc Plated Washers

5/16" Zinc Plated Washers

Y4919

5/16" Break-Away Nuts

5/16" Break-Away Nuts

Y4921

5/16" Nylon Washers

5/16" Nylon Washers

Y4918

4lb. Steel U-Channel Post Protector For Post Installation

4lb. Steel U-Channel Post Protector For Post Installation

Y3464, Y3468

32lb. Steel U-Channel Post Driver

32lb. Steel U-Channel Post Driver

Y4894

SNAP’n SAFE U-Channel Post Breakaway Coupler

SNAP’n SAFE U-Channel Post Breakaway Coupler

Y3539

SNAP’n SAFE Square Post Breakaway Coupler

SNAP’n SAFE Square Post Breakaway Coupler

Y3540

SNAP’n SAFE U-Channel Post Surface Mount Breakaway Base

SNAP’n SAFE U-Channel Post Surface Mount Breakaway Base

Y3541

SNAP’n SAFE Square Post Surface Mount Breakaway Base

SNAP’n SAFE Square Post Surface Mount Breakaway Base

Y3542

SNAP’n SAFE Round Post Surface Mount Breakaway Base

SNAP’n SAFE Round Post Surface Mount Breakaway Base

Y3543

2-3/8" Round Post Surface Mount Base

2-3/8" Round Post Surface Mount Base

Y3544

U-Channel Post Surface Mount Base

U-Channel Post Surface Mount Base

Y3545

Square Post Surface Mount Base

Square Post Surface Mount Base

Y3546

Tamper-Resistant Round Post Sign Bracket

Tamper-Resistant Round Post Sign Bracket

Y4964

Stainless Steel Strapping

Stainless Steel Strapping

Y3534

Stainless Steel Wing Seals

Stainless Steel Wing Seals

Y3528

Stainless Steel Buckles

Stainless Steel Buckles

Y3529

Stainless Steel Flared Leg Brackets

Stainless Steel Flared Leg Brackets

Y3530

Stainless Steel Straight Leg Brackets

Stainless Steel Straight Leg Brackets

Y3531

Ratchet Type Strapping Tool

Ratchet Type Strapping Tool

RTST-1

Spinner Type Tensioner Tool

Spinner Type Tensioner Tool

Y3532

One-Handed Ratchet Tool with Cutter

One-Handed Ratchet Tool with Cutter

Y3533

Square Post Manual Drive Cap

Square Post Manual Drive Cap

Y3547

Corner Bolt Set with Jam Nuts

Corner Bolt Set with Jam Nuts

Y3535

Drive Rivets

Drive Rivets

Y3527

Next
  • Size
  • Material
  • Printing
  • Reviews

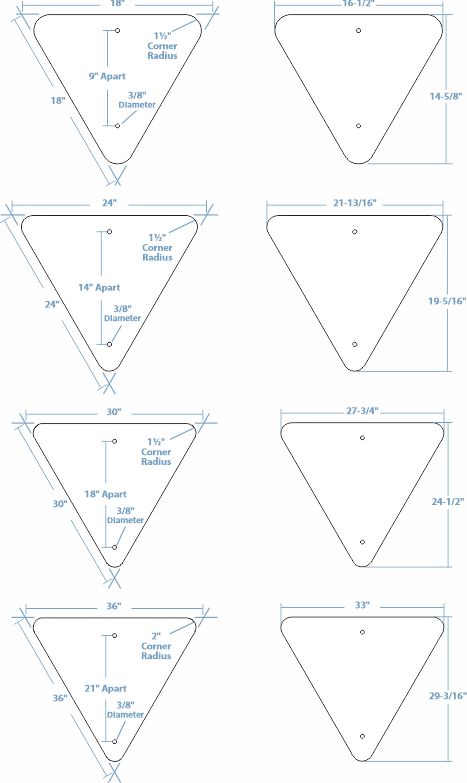

Size Width Average
Text Size
Max Viewing
Distance
Available Materials Mounting Holes Corner Radius Diagram
18″ Triangle 18″ 1½″ Up to 37′ 6″
  • .080″ Engineering Grade Reflective Aluminum
  • .080″ High Intensity Prismatic Reflective Aluminum
  • .080″ Diamond Grade Reflective Aluminum
Two ⅜″ Holes 1½″ Diagram
24″ Triangle 24″ 2″ Up to 50′
  • .080″ Engineering Grade Reflective Aluminum
  • .080″ High Intensity Prismatic Reflective Aluminum
  • .080″ Diamond Grade Reflective Aluminum
Two ⅜″ Holes 1½″ Diagram
30″ Triangle 30″ 2½″ Up to 62′ 6″
  • .080″ High Intensity Prismatic Reflective Aluminum
  • .080″ Diamond Grade Reflective Aluminum
  • .080″ Engineering Grade Reflective Aluminum
Two ⅜″ Holes 1½″ Diagram
The viewing distances listed in this chart reflect the viewing distance for each of the sizes. The Manual of Uniform Traffic Control Devices (MUTCD) does not provide specifics regarding the use of certain text heights at certain distances in order to improve legibility. Instead, the MUTCD has already determined all of the necessary text sizes and merely provides the specifications for various sizes of signs, which in turn all have specific use cases that must be followed in order to help keep drivers safe and aware of important regulations.
It is the responsibility of the end user to follow the guidelines and requirements of the Manual of Uniform Traffic Control Devices (MUTCD) in order to provide road users with signs that ensure optimal legibility.
More Options SafetySign.com understands that the Yield Sign may not be available in the size that you require. Please contact our customer service team today and we’ll be happy to work with you to produce exactly what you need. Contact us now.
Material Thickness Outdoor Durability Service Temp. Range Available
Sizes
Overlaminate
Engineering Grade Reflective Aluminum A durable enclosed lens retro-reflective material permanently adhered to aluminum. It is an economical choice for non-critical traffic signs, parking lot signs, and safety signs. The pattern free face allows for clean graphic imaging. It meets the requirements of ASTM D4956 Type I, and will remain effective for up to 7 years. Resistant to fading and mild chemicals. Reflectivity:
0.08″ Up to 7 Years -10°F - 130°F
  • 18″ Triangle
  • 24″ Triangle
  • 30″ Triangle
  • None
High Intensity Prismatic Reflective Aluminum A microprismatic retro-reflective sheeting permanently adhered to aluminum that provides a high level of retroreflectivity, and meets the requirements of ASTM D4956 Type IV. It is 3 to 4 times brighter than standard Engineering Grade sheeting, and will remain effective for up to 10 years. Reflectivity:
0.08″ 7 to 10 Years -10°F - 130°F
  • 18″ Triangle
  • 24″ Triangle
  • 30″ Triangle
  • None
Diamond Grade Reflective Aluminum A high efficiency, microprismatic retro-reflective material permanently adhered to aluminum, designed to be highly visible during the day, at night, and during inclement weather. It has excellent visibility at wide entrance and observation angles, and meets the requirements of ASTM D4956 Type IX. It is 10 times brighter than standard Engineering Grade sheeting, and will remain effective for up to 12 years. Reflectivity:
0.08″ 10+ Years -10°F - 130°F
  • 18″ Triangle
  • 24″ Triangle
  • 30″ Triangle
  • None

None
Engineering Grade
High Intensity Prismatic
Diamond Grade
  NoneEngineering GradeHigh Intensity PrismaticDiamond Grade
ATSM D956 Type Type I Type IV Type IX
Brightness Standard Material 3x More 10x More
Night-Time Visibility 500' 1,000' 1,500'
Reflectivity




SafetySign.com understands that the Yield Sign may not be available in a material that meets your requirements. Please contact our customer service team today and we’ll be happy to work with you to find the right material for your needs. Contact us now.
Using the latest digital printing technologies and processes, your Yield Sign has text and graphics printed directly onto the substrate. Using UV inks, your Yield Sign text and graphics will not peel, unlike signs from companies that laminate graphics over the sign material. These advanced practices also eliminate set-up charges and minimums. Your set-up time is also greatly reduced, allowing SafetySign.com to print your traffic signs quickly and have them shipped out fast.
SafetySign Printing
Printing Methods

We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.

SafetySign Printing
Cross-Hatch Ink Adhesion Test

SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.

We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.

SafetySign Printing
Fonts

The text is printed in HGCPIXymbols font.

The Yield Sign from SafetySign.com uses these fonts because they are used on all signs from the Manual on Uniform Traffic Control Devices (MUTCD). These fonts are easy to read in daytime and nighttime conditions, and they are still legible no matter what
