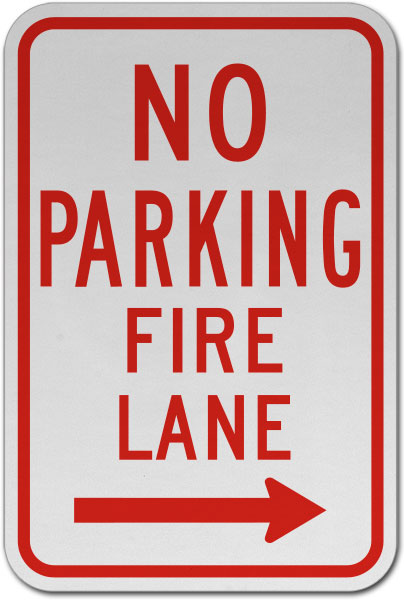

No Parking Fire Lane (Right Arrow) Sign
International Fire Code and MUTCD Compliant FIRE LANE SIGNS
Fire Apparatus Access Roads
D103.6 Signs. Where required by the fire code official, fire apparatus access roads shall be marked with permanent "NO PARKING FIRE LANE" signs. Signs shall have a minimum dimension of 12 inches (305 mm) wide by 18 inches (457 mm) high and have red letters on a white reflective background. Signs shall be posted on one or both sides of the fire apparatus road as required by Section D103.6.1 or D103.6.2.
SIGN TYPE "A" = NO PARKING FIRE LANE with Right Arrow X2486
SIGN TYPE "C" = NO PARKING FIRE LANE with Left Arrow X2487
SIGN TYPE "D" = NO PARKING FIRE LANE No Arrow X2479
D103.6.1 Roads 20 to 26 feet in width. Fire lane signs as specified in Section D103.6 shall be posted on both sides of fire apparatus access roads that are 20 to 26 feet wide (6096 to 7925 mm).
D103.6.2 Roads more than 26 feet in width. Fire lane signs as specified in Section D103.6 shall be posted on one side of fire apparatus access roads more than 26 feet wide (7925 mm) and less than 32 feet wide (9754 mm).
No Parking Fire Lane (Double Arrow) Sign X2485
