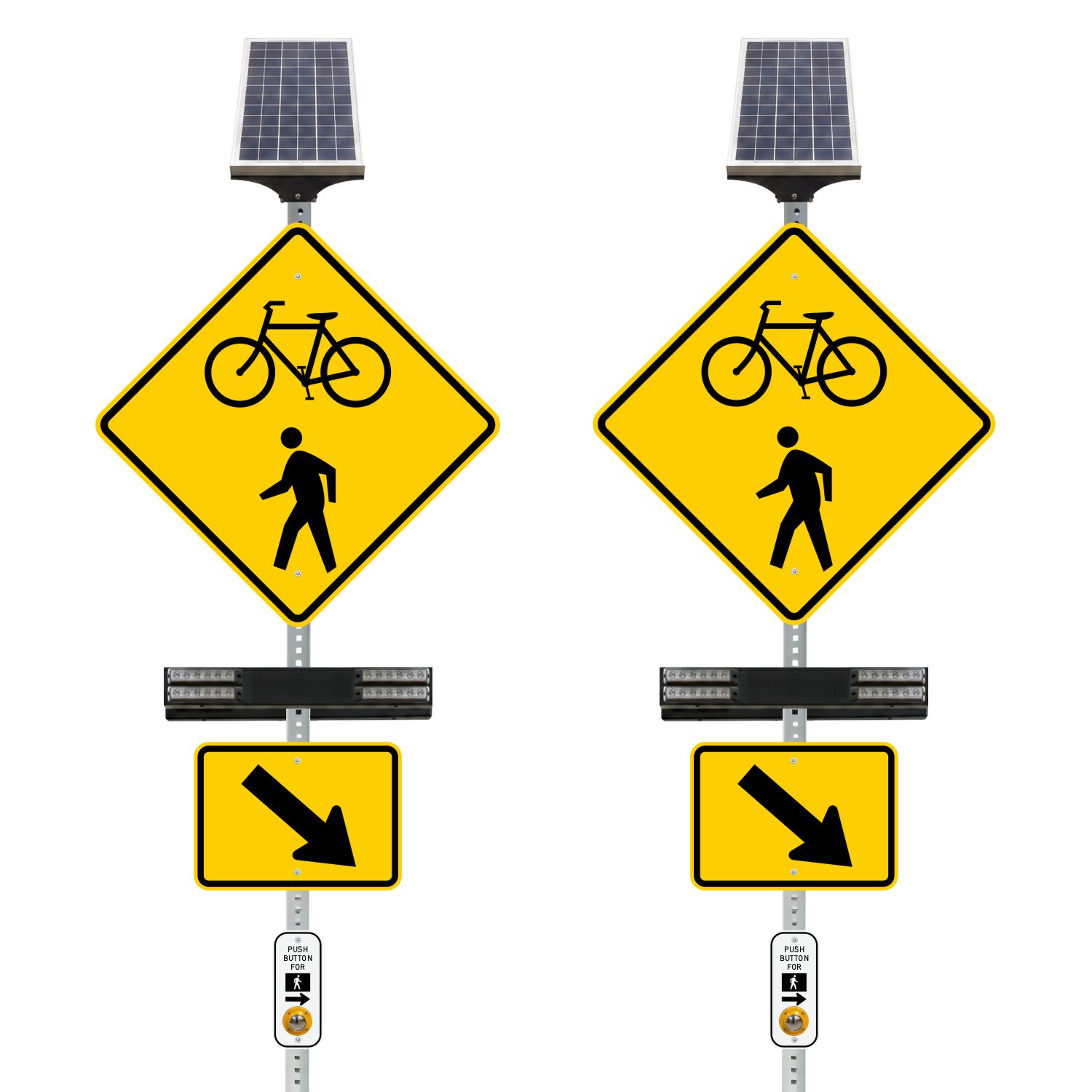

A rectangular rapid flashing beacon (RRFB) is a pedestrian-activated, high-intensity LED warning light used to supplement signs at uncontrolled crosswalks. This double-sided solar kit ships preconfigured with four beacons (two per side), an integrated 30W solar panel and battery, a 30" diamond grade diamond bicycle and pedestrian crossing sign (W11-15), and left and right diagonal arrow plaques. The beacons flash in the MUTCD wig-wag plus simultaneous (WW+S) pattern to alert drivers when a pedestrian is present. Solar powered, with no AC wiring or trenching required. Suitable for uncontrolled mid-block crosswalks, school zones, and trail crossings. Not intended for signalized or stop-controlled intersections.
The Double-Sided Solar RRFB Crossing Kit for Bicycle/Pedestrian Crossings brings bidirectional warning to shared-use crossings on two-way roadways and divided alignments — trail intersections, greenway crossings, and multimodal paths where users meet traffic from both directions. On activation, beacons facing each way flash the rapid wig-wag pattern, alerting drivers in both streams to users who may be crossing at cycling speed.
The system is fully solar. A 30-watt panel powers both beacon faces and the activation electronics with no trenching or utility connection, so the kit installs on a single pole and goes live the same day — practical for path crossings away from existing infrastructure. Sealed battery storage holds the dual-face load through overcast conditions, rated for up to 15 years of service-free operation.
Activation is battery-free; the piezoelectric button draws power from the press, removing dead-button maintenance on remote crossings. The assembly is rated for extreme climates from -40°C to +50°C.
This kit satisfies the MUTCD W11-15 flashing-beacon standard and ships complete: dual-facing beacons, the combined bicycle/pedestrian crossing sign, an arrow plaque, the activation button, solar assembly, and mounting hardware. Reflective sheeting is available in multiple grades.

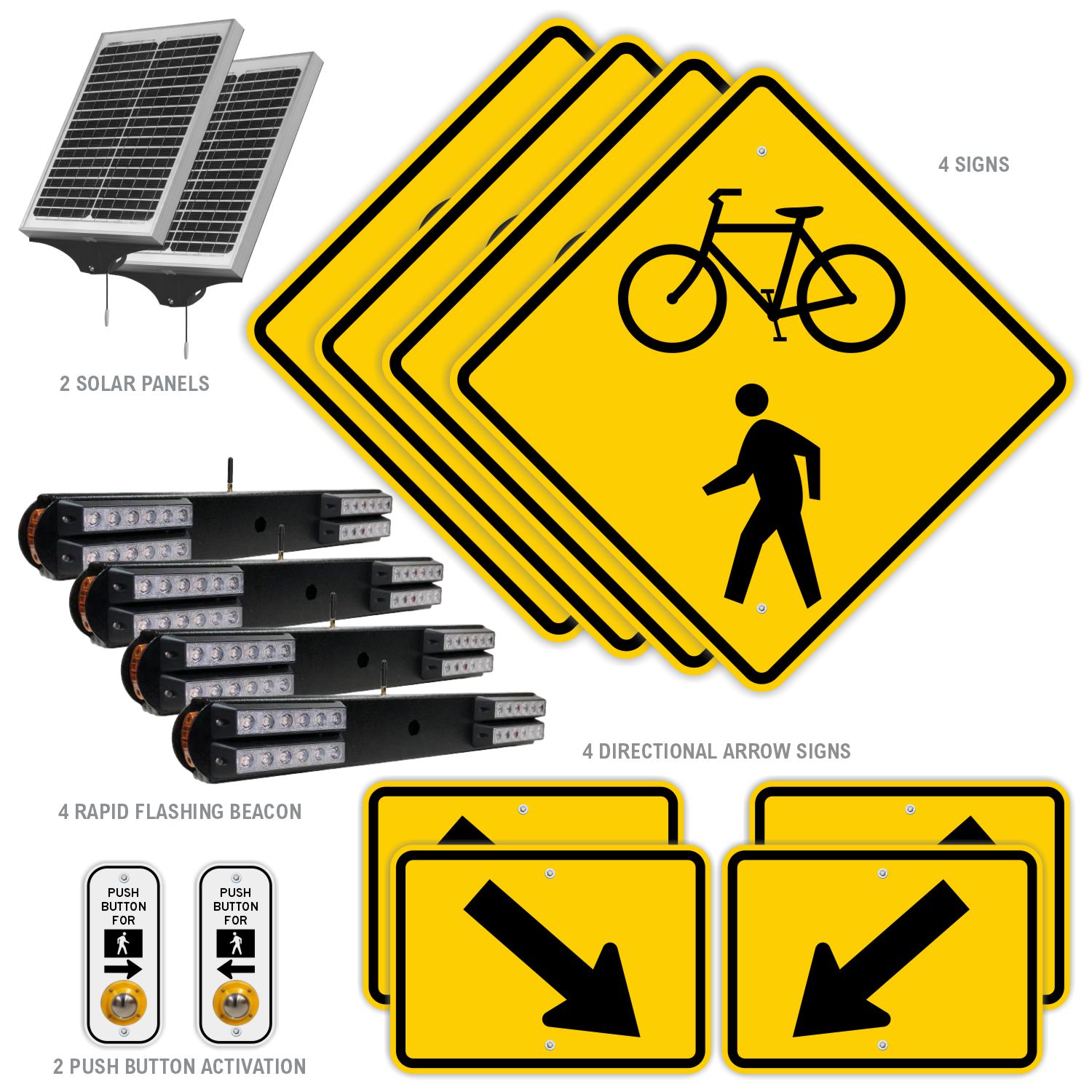

RRFB Crossing Kit Includes:
- (4) Rapid Flashing Beacons
- (2) Push Buttons Activation
- (2) Solar Panels
- (4) Crossing Signs
- (4) Directional Arrow Signs
System Features
For municipalities, parks and recreation departments, transportation agencies, and trail contractors, the Double-Sided Bicycle/Pedestrian RRFB Kit covers two-way multimodal crossings from one solar installation. Free analytics and remote configuration software — no annual fee — handle setup and crossing-activity data without a site visit.
Encrypted wireless keeps both faces synchronized, and the thin-profile head keeps the unit clean against a trailside setting.
Features:
- Dual-facing rapid-flash beacons warn shared-use traffic from both directions.
- Covers two-way roadways and divided alignments from one installation.
- Battery-free piezoelectric activation — ideal for remote path crossings.
- Fully solar-powered (30W); single-pole install, no utility connection.
- Meets the MUTCD W11-15 flashing-beacon standard.
- Sealed battery storage sized for dual-face load, rated up to 15 years.
- Rated for extreme climates, -40°C to +50°C.
- Encrypted wireless sync between beacon faces.
- Free remote configuration and crossing-activity analytics software.
- Complete kit: dual beacons, combined bike/ped sign, arrow plaque, button, solar, hardware.
Configuration: Dual-Faced Full System · 30W solar
Compliance Information:https://highways.dot.gov/sites/fhwa.dot.gov/files/RRFB_508_0.pdf
