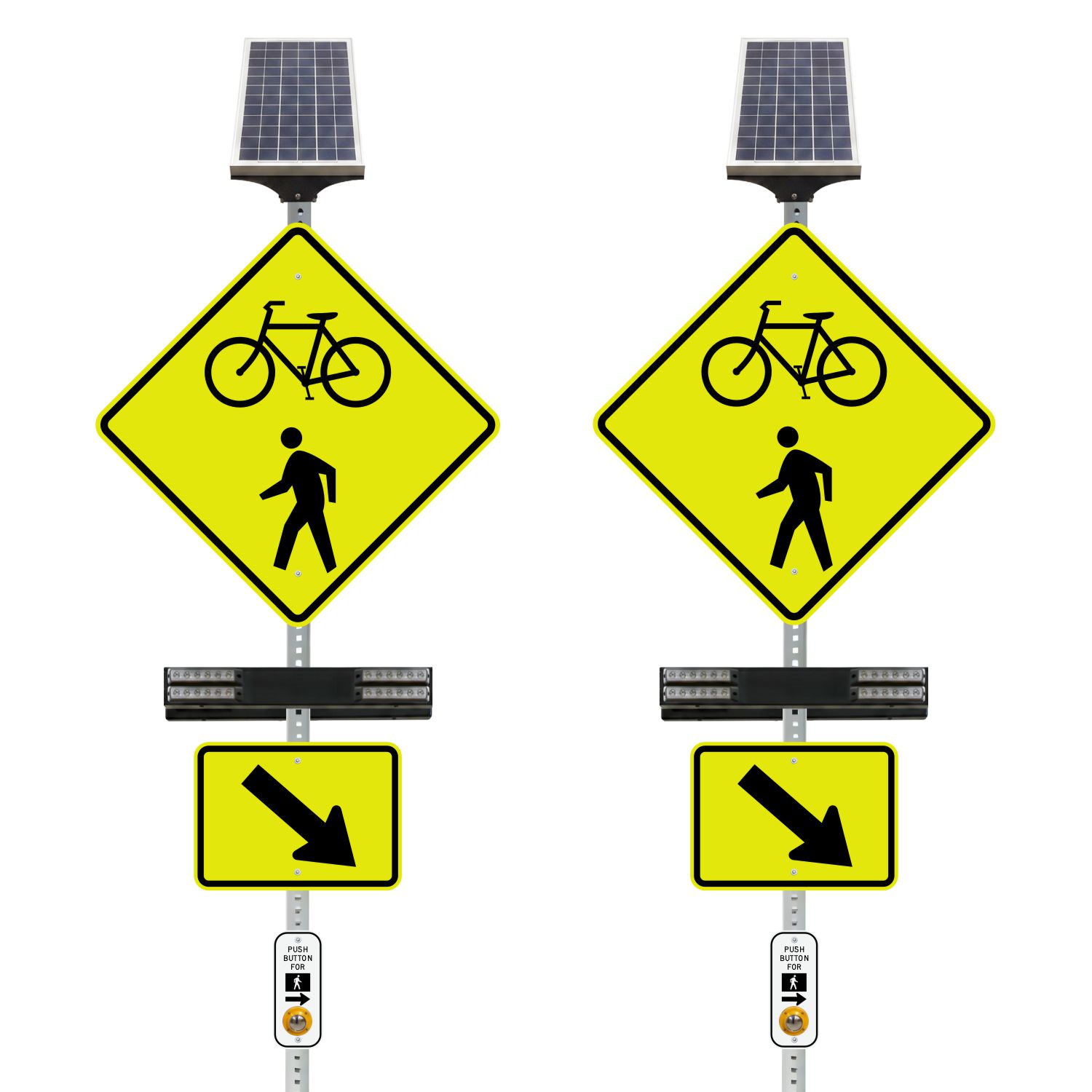

A rectangular rapid flashing beacon (RRFB) is a pedestrian-activated, high-intensity LED warning light used to supplement signs at uncontrolled crosswalks. This double-sided solar kit ships preconfigured with four beacons (two per side), an integrated 30W solar panel and battery, a 30" fluorescent yellow-green diamond grade diamond bicycle and pedestrian crossing sign (W11-15), and left and right diagonal arrow plaques. The beacons flash in the MUTCD wig-wag plus simultaneous (WW+S) pattern to alert drivers when a pedestrian is present. Solar powered, with no AC wiring or trenching required. Suitable for uncontrolled mid-block crosswalks, school zones, and trail crossings. Not intended for signalized or stop-controlled intersections.
The Double-Sided Solar RRFB Kit for Bicycle/Pedestrian Crossings brings bidirectional warning to shared-use crossings on two-way roadways and divided alignments — trail intersections, greenway crossings, and multimodal paths where users meet traffic from both directions. On activation, beacons facing each way flash the rapid wig-wag pattern, alerting drivers in both streams to users who may be crossing at cycling speed.
The system is fully solar. A 30-watt panel powers both beacon faces and the activation electronics with no trenching or utility connection, so the kit installs on a single pole and goes live the same day — practical for path crossings away from existing infrastructure. Sealed battery storage holds the dual-face load through overcast conditions, rated for up to 15 years of service-free operation.
Activation is battery-free; the piezoelectric button draws power from the press, removing dead-button maintenance on remote crossings. The assembly is rated for extreme climates from -40°C to +50°C.
This kit satisfies the MUTCD W11-15 flashing-beacon standard and ships complete: dual-facing beacons, the combined bicycle/pedestrian crossing sign, an arrow plaque, the activation button, solar assembly, and mounting hardware. Reflective sheeting is available in multiple grades.
System Features
For municipalities, parks and recreation departments, transportation agencies, and trail contractors, the Double-Sided Bicycle/Pedestrian RRFB Kit covers two-way multimodal crossings from one solar installation. Free analytics and remote configuration software — no annual fee — handle setup and crossing-activity data without a site visit.
Encrypted wireless keeps both faces synchronized, and the thin-profile head keeps the unit clean against a trailside setting.
Features:
- Dual-facing rapid-flash beacons warn shared-use traffic from both directions.
- Covers two-way roadways and divided alignments from one installation.
- Battery-free piezoelectric activation — ideal for remote path crossings.
- Fully solar-powered (30W); single-pole install, no utility connection.
- Meets the MUTCD W11-15 flashing-beacon standard.
- Sealed battery storage sized for dual-face load, rated up to 15 years.
- Rated for extreme climates, -40°C to +50°C.
- Encrypted wireless sync between beacon faces.
- Free remote configuration and crossing-activity analytics software.

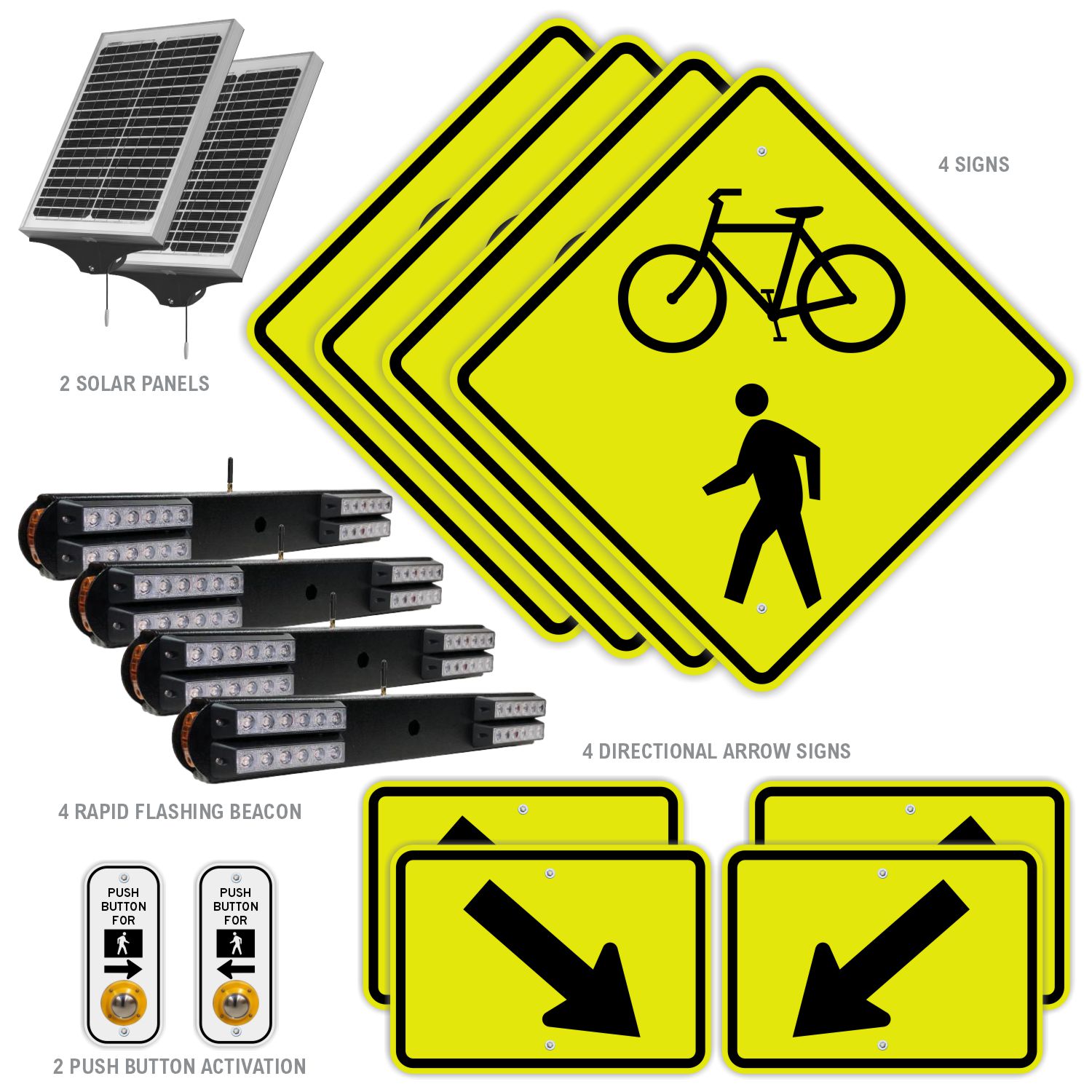

- Complete kit: dual beacons, combined bike/ped sign, arrow plaque, button, solar, hardware.
Configuration: Dual-Faced Full System · 30W solar
Compliance Information:https://highways.dot.gov/sites/fhwa.dot.gov/files/RRFB_508_0.pdf
