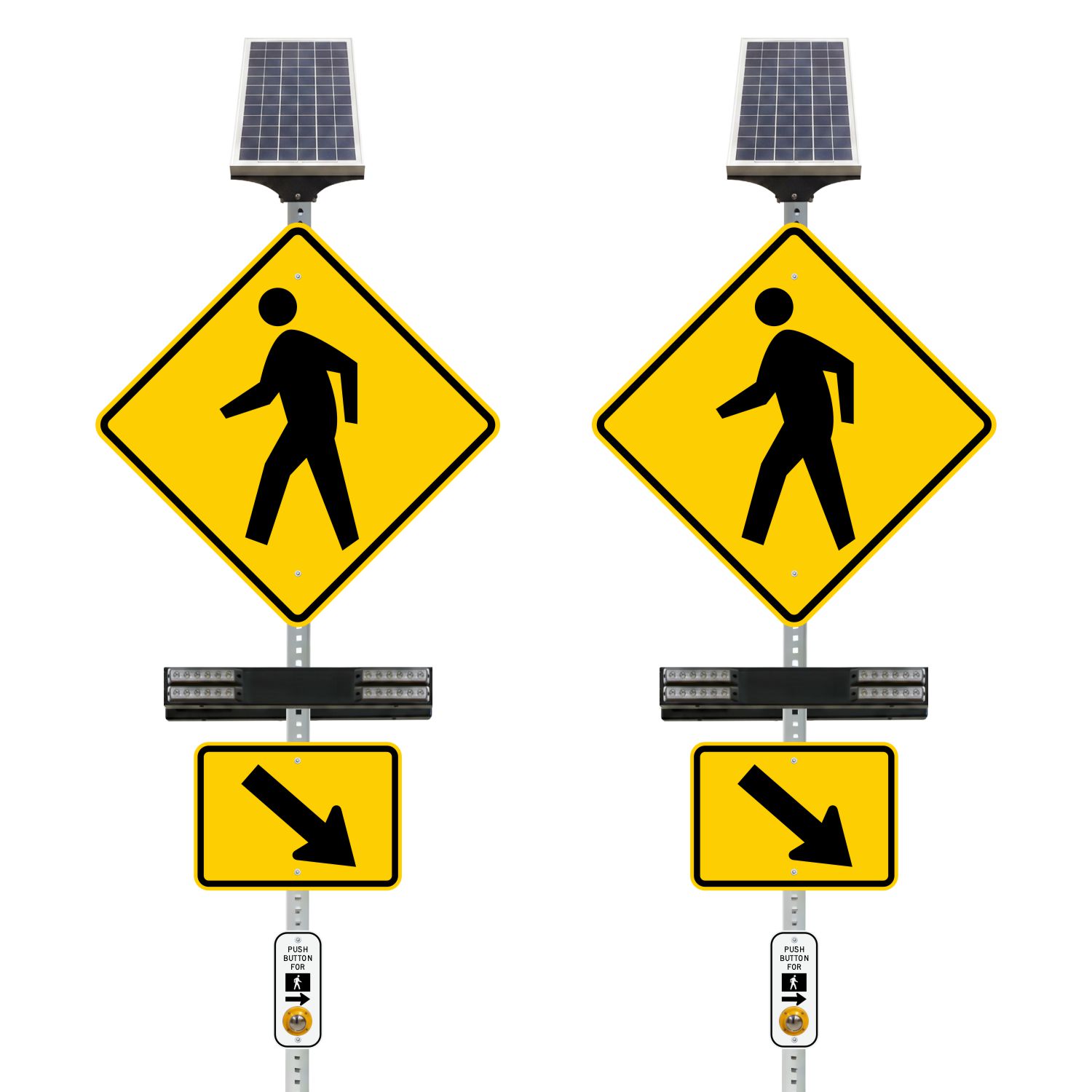

A rectangular rapid flashing beacon (RRFB) is a pedestrian-activated, high-intensity LED warning light used to supplement signs at uncontrolled crosswalks. This double-sided solar kit ships preconfigured with four beacons (two per side), an integrated 30W solar panel and battery, a 30" diamond grade diamond pedestrian crossing sign (W11-2), and left and right diagonal arrow plaques. The beacons flash in the MUTCD wig-wag plus simultaneous (WW+S) pattern to alert drivers when a pedestrian is present. Solar powered, with no AC wiring or trenching required. Suitable for uncontrolled mid-block crosswalks, school zones, and trail crossings. Not intended for signalized or stop-controlled intersections.
The Double-Sided Solar RRFB Kit warns traffic approaching a pedestrian crossing from both directions. With beacons facing each way, a single installation covers two-way roadways, divided approaches, and median placements — when a pedestrian activates the system, high-intensity LED beacons flash the rapid wig-wag pattern toward both streams of traffic at once.
The kit is fully solar. A 30-watt panel powers both beacon faces, the sign lighting, and the activation electronics with no trenching, conduit, or utility connection, so the system mounts and goes live the same day. Sealed battery storage carries the higher dual-face load through cloudy stretches and short winter days, rated for up to 15 years of service-free operation.
The activation button is battery-free, drawing power from the press itself — no coin cells, no dead-button service calls. The full assembly is rated for extreme climates from -40°C to +50°C, holding performance from hard winters through summer heat.
This kit meets the MUTCD W11-15 flashing-beacon standard and ships as a complete, ready-to-mount package: dual-facing rectangular beacons, the pedestrian crossing sign, a downward arrow plaque, the activation button, solar assembly, and mounting hardware. Reflective sign sheeting is available across multiple grades.
System Features
Built for municipalities, DOTs, and contractors covering two-way and divided crossings, the Double-Sided Solar RRFB Kit delivers bidirectional warning from one solar installation — no second pole, no second power source. Included analytics and configuration software, free of any annual license, give crews remote setup and crossing-activity data that competitors typically charge for.
Encrypted wireless keeps both beacon faces synchronized, and the thin-profile housing minimizes wind load even with the dual-sided head.
Features:
- Dual-facing rapid-flash beacons warn traffic from both directions.
- Single installation covers two-way roadways, divided approaches, and medians.
- Battery-free piezoelectric activation button — no replacement cycle.
- Fully solar-powered (30W); no trenching, conduit, or utility connection.
- Meets the MUTCD W11-15 flashing-beacon standard.
- Sealed battery storage sized for dual-face load, rated up to 15 years.
- Rated for extreme climates, -40°C to +50°C.
- Encrypted wireless sync between beacon faces.
- Free remote configuration and crossing-activity analytics software.
- Complete kit: dual beacons, sign, arrow plaque, button, solar, and hardware.
Configuration: Dual-Faced Full System · 30W solar
Compliance Information: https://highways.dot.gov/sites/fhwa.dot.gov/files/RRFB_508_0.pdf
