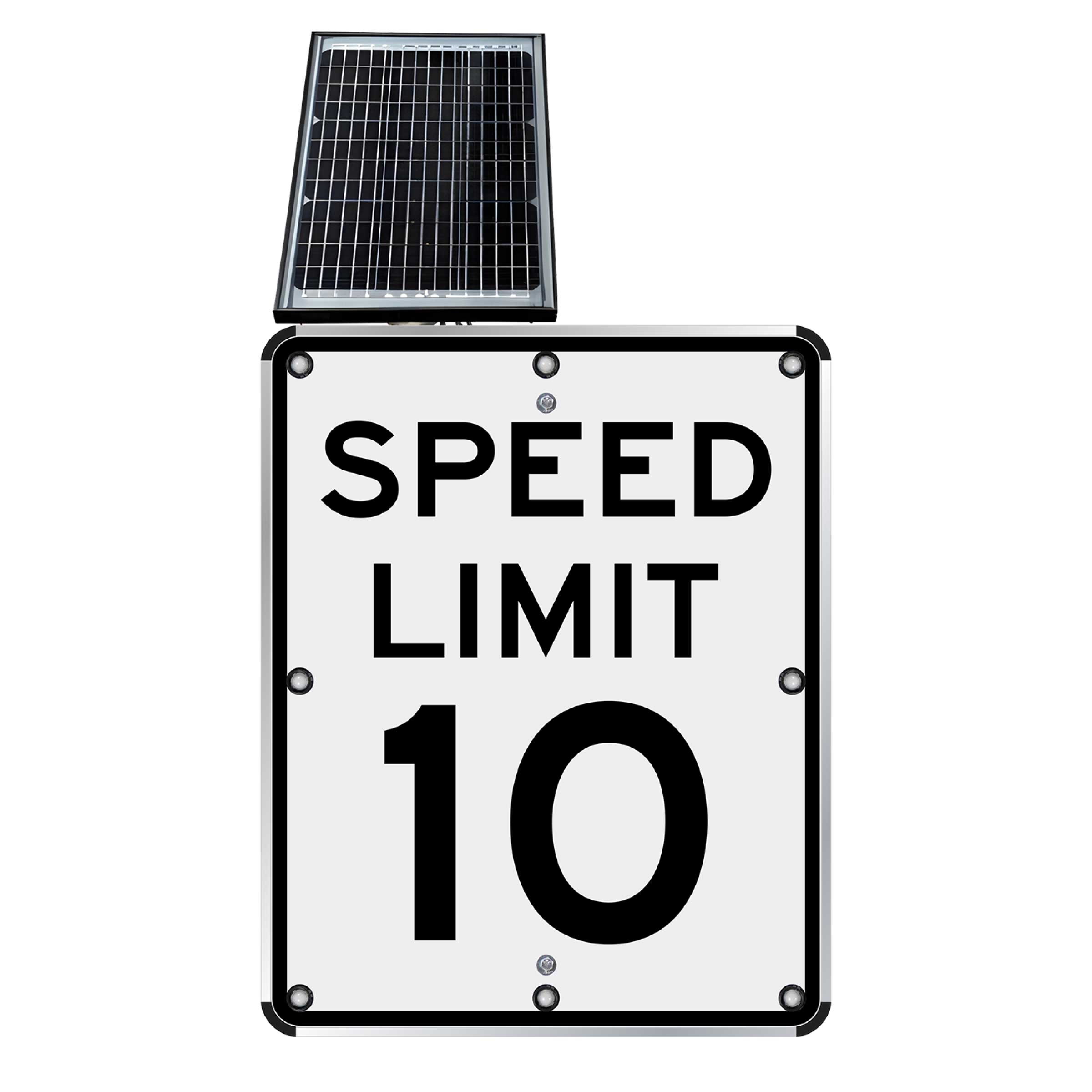

10 MPH LED Solar Speed Limit Sign
  • 10 MPH LED Solar Speed Limit Sign
  • 10 MPH LED Solar Speed Limit Sign
  • 10 MPH LED Solar Speed Limit Sign
  • 10 MPH LED Solar Speed Limit Sign
Item #
Y5202-18VEG
Led Signs Reads
Speed Limit 10
Compliance
MUTCD R2-1

Note:

Flashing LED lights operate 24/7 and are powered by a self-contained battery system, allowing them to run for up to 48 hours (2 days) without sunlight.

Data Sheet

10 MPH LED Solar Speed Limit Sign

Complies with MUTCD R2-1

Standard Sign Type: LED Speed Limit Sign

Also Available:

Size:

Material:

Laminate:

Mounting:

Packaging:

Price:
$800.00
Low Price Guarantee

Your item has been added to cart.

0 In Stock
Special freight arrangements are necessary.

Need a quote for a large order? Call 800‑274‑5271 or email us.

Recommended Accessories

Frequently Purchased Together

Product Information

Details

Our 10 MPH LED Solar Speed Limit Sign is a highly visible solution for areas needing a 10 mph speed limit, enhancing safety in controlled environments like industrial sites or residential areas. Crafted from tough, quality materials, this LED sign provides long-lasting visibility and effectiveness.

10 MPH LED Solar Speed Limit Sign Features
  • The LED Solar Sign is designed for installation on both new and existing poles.
  • Sign comes in various sizes and reflective grades to suit your specific needs.
  • MUTCD Compliant.
  • LED flashing operates 24/7.
  • Flashing LEDs enhance safety at intersections by increasing driver awareness of traffic control signs.
  • Improved visibility both during the day and at night.
  • With its adjustable tilting solar panel, it charges in just 6-8 hours and provides up to 48 hours of continuous use.
  • Easily monitor the battery percentage digitally to stay informed about when a recharge is needed.
  • Back Controller Rectangle Vertical

Solar Panel Unit and LED Specifications
Modes 24/7 Flash or Flash from Dusk to Dawn
Battery 12V 7,500 mAh Rechargeable Lithium-Ion Battery
Battery Life 6-8 hours to fully charge / up to 48 hours of use
Solar Panel 18V 13W
LEDs 8 LEDs (0.5W each)
LED Colors White
Reflective Grades EG, HIP, DG

10 MPH LED Solar Speed Limit Sign Installation

Step by Step Installation Provided Below:

  • LED Stop Sign Hardware
    1. Secure the sign to the post using
    the provided mounting bolts.
  • LED Stop Sign Hardware
    2. Position the bracket and screw for
    the solar panel in their designated locations.
  • LED Stop Sign Hardware
    3. Use a socket wrench to adjust the
    bracket's angle, then tighten the screw securely.
  • LED Stop Sign Hardware
    4. Align the solar panel with the bracket,
    then place the solar panel into position.
  • LED Stop Sign Hardware
    5. Use an Allen key to tighten the two
    set screws, securing the solar panel to the bracket.
  • LED Stop Sign Hardware
    6. Connect the cable from the solar panel
    to the cable from the battery.
  • LED Stop Sign Hardware
    7. Turn the orange key on the battery to
    switch between functions: Off, 24/7 flashing,
    and night mode (dusk to dawn) flashing.
  • LED Stop Sign Hardware
    8. Press the small button next to the
    digital display to check the battery charge.
    The first press shows the battery percentage,
    the second displays the voltage (100% = 12.5V),
    and the third press turns off the display.
