We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.
Exit (Right Arrow) Sign
- Item #:
- Sign Reads:
Other configurations of this product
- LEED Compliant
- ECCN Certification
- OSHA 1910.1200(c)
- Shipping Declarations
14 × 10″
|.046″ Glow-in-the-Dark Plastic||N/A||Four 7/32″ holes (one in each corner)||A5242-EK||$32.70||$31.10||$29.50||$27.50||$25.80||$23.40|
|.040″ Rust-Free Aluminum||None||Four 7/32″ holes (one in each corner)||A5242-FK||$19.10||$18.05||$15.75||$15.25||$14.30||$12.00|
|.055″ Polyethylene Plastic||N/A||Four 7/32″ holes (one in each corner)||A5242-BK||$10.75||$10.30||$9.75||$9.25||$7.75||$6.50|
|4 Mil Glow-in-the-Dark Peel and Stick Polyester Label||N/A||N/A||A5242-DK||$19.90||$17.90||$16.90||$16.50||$15.90||$14.90|
|3.5 Mil Peel and Stick Vinyl Label||N/A||N/A||A5242-AK||$10.40||$9.25||$8.95||$8.25||$7.45||$6.25|

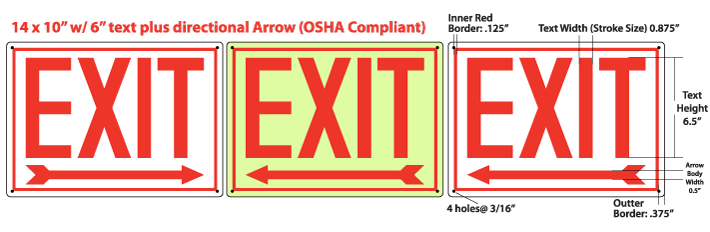

EXIT SIGN with 6.5" High Text
These code excerpts are provided for guidance purposes only, and are not intended to replace any training guide, regulation or professional consultation. We do not guarantee the accuracy of the information stated below. To obtain accurate information, contact your local government agency or purchase the latest EXIT sign regulations at NFPA.org
Exit signs are required by the current fire regulations to alert people which direction to take in case of an emergency. All exit routes should be clearly marked using signs that comply with the current fire regulations.
- These are NOT Electrical Signs, instead they are regular EXIT safety signs.
- Signs are digitally or screen printed with UV inks on plastic, aluminum and vinyl film materials.
- Adhesive backed vinyl film labels are supplied with round corners only.
- Aluminum and Plastic signs are supplied with rounded corners and 4 mounting holes.
- Glow in the dark signs are not recommended for outdoor applications only indoors.
- Signs do not have any over lamination.
- Image / Text on signs is printed directly onto the sign material.
Standard Number: 1910.37 Title: Maintenance, safeguards, and operational features for exit routes.
1910.37(a) The danger to employees must be minimized.
1910.37(a)(1) Exit routes must be kept free of explosive or highly flammable furnishings or other decorations.
1910.37(a)(3) Exit routes must be free and unobstructed. No materials or equipment may be placed, either permanently or temporarily, within the exit route. The exit access must not go through a room that can be locked, such as a bathroom, to reach an exit or exit discharge, nor may it lead into a dead-end corridor. Stairs or a ramp must be provided where the exit route is not substantially level.
1910.37(b)(1) Each exit route must be adequately lighted so that an employee with normal vision can see along the exit route.
1910.37(b)(2) Each exit must be clearly visible and marked by a sign reading "Exit."
1910.37(b)(3 Each exit route door must be free of decorations or signs that obscure the visibility of the exit route door.
1910.37(b)(4) If the direction of travel to the exit or exit discharge is not immediately apparent, signs must be posted along the exit access indicating the direction of travel to the nearest exit and exit discharge. Additionally, the line-of-sight to an exit sign must clearly be visible at all times.
1910.37(b)(5) Each doorway or passage along an exit access that could be mistaken for an exit must be marked "Not an Exit" or similar designation, or be identified by a sign indicating its actual use (e.g., closet).
1910.37(b)(6) Each exit sign must be illuminated to a surface value of at least five foot-candles (54 lux) by a reliable light source and be distinctive in color. Self-luminous or electroluminescent signs that have a minimum luminance surface value of at least .06 footlamberts (0.21 cd/m2) are permitted.
1910.37(b)(7) Each exit sign must have the word "Exit" in plainly legible letters not less than six inches (15.2 cm) high, with the principal strokes of the letters in the word "Exit" not less than three-fourths of an inch (1.9 cm) wide.
SafetySign.com does not recommend or specify the use of a specific safety sign because it does not have knowledge of the hazard(s) our customers are identifying. It is the customer’s sole responsibility to identify the hazard(s) that may be present and select one or more signs (stock or custom) that accurately identify their specific hazard(s) and complies with any applicable federal, state or local laws or regulations, any worksite specific rules or regulations and/or any applicable safety standards (including, without limitation, ANSI and/or OSHA standards). SafetySign.com disclaims any and all liability (excluding liability for our Product Warranty contained in our Terms and Conditions) for any sign selected by a customer and shall not be responsible for any personal injury or property damage resulting from the use of signs purchased from it or for the independent interpretation made of any applicable federal, state or local laws or regulations, any worksite specific rules or regulations, and/or any applicable safety standards (including, without limitation, ANSI and/or OSHA standards). Customer shall indemnify and hold SafetySign.com and its corporate parent and its officers, directors and affiliates harmless from and against any and all claims, loss or expense (including attorneys’ fees) arising from or related to the purchase and use by customer or any third party of any sign purchased by customer from SafetySign.com.
|Available Materials||Mounting Holes||Corner Radius||Diagram|
|14 × 10″||14″||10″||6 ½″||Up to 162′ 6″||
||Four 7/32″ Holes (#10 or 3/16″ screws recommended)||¼″||Diagram|
|Material||Thickness||Outdoor Durability||Service Temp. Range||Available
|Adhesive-Backed Vinyl Outdoor grade high gloss calendared vinyl film, and coated with aggressive LEED compliant acrylic adhesive formulated to adhere to a variety of surfaces, ensuring durability in most commercial and industrial environments. Resistant to fading and mild chemicals. This material is in compliance with the standards set forth by the South Coast Air Quality Management District (SCAQMD) Rule #1168 and the Green Seal Standard, GS-36 for commercial adhesives pertaining to Volatile Organic Compounds (VOC). Clean and dry surface before applying. Minimum application temperature is 50°F.||3.5 mils||4 to 5 Years||-20° to 176° F||
|Glow-in-the-Dark Adhesive-Backed Polyester 4 mils thick glow-in-the-dark polyester film with a LEED compliant adhesive, suitable for indoor and outdoor applications. Not resistant to contact with chemicals. This material will glow for up to 10 hours when it is charged with a strong light source for at least 60 minutes. Daylight color is soft-yellow to eggshell white. Color in darkness is photoluminescent yellowish. Storage stability of 1 year. Elongation, 164.0% with a tensile strength of 3.1 K/ 10mm. This material meets or exceeds DIN 67510-I, ASTM 2072, ISO 15370, IMO Res.A.752 (18), JIS Z9100, NYC RS6-1. Clean and dry surface before applying. Minimum application temperature is 60°F (15°C).||4 mils||Indefinite Indoors / Up to 3 years Outdoors||120° F (50° C) Max.||
|Polyethylene Plastic A tough plastic that is rust free and resistant to chips, cracks, fading and mild chemicals. It is an economical alternative to aluminum without a significant compromise in durability. Thicknesses of .055" and less will easily bend to fit certain surfaces without causing material fractures.||0.055″||3 to 5 Years||-40° to 180° F||
|Glow-in-the-Dark Plastic .046" photoluminous plastic will not rust, is resistant to chips and cracks, and will easily bend to certain surfaces without causing material fractures. It is designed for indoor use only. This material can be charged by any light source in as little as 15 minutes, and will glow for up to 10 hours when it is charged with a strong light source for at least 60 minutes. Cool white light sources such as fluorescent lighting and sunshine are excellent activators. Soft warm lighting such as incandescent light bulbs are not as effective. This material meets or exceeds DIN 67510-I, ASTM 2072, ISO 15370, IMO Res. A.752 (18), JIS Z9100, NYC RS6-1.||0.046″||Indoor Use Only||-4° to 122° F||
|Rust-Free Aluminum A durable metal material that will not chip, crack, or rust, offers superior resistance to harsh weather conditions, and has good chemical resistance properties. The optimal choice for outdoor usage.||0.04″||5 to 7 Years||-40° to 212° F||
|None||Engineering Grade||High Intensity Prismatic||Diamond Grade|
|ATSM D956 Type||–||Type I||Type IV||Type IX|
|Brightness||–||Standard Material||3x More||10x More|
SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.
We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.
The text is printed in Arial Black font.
The Exit (Right Arrow) Sign from SafetySign.com uses this font to create a bold message that stands out in order to grab your attention, while also remaining clearly legible at the maximum safe viewing distance of the product.
