We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.
Bilingual Tornado Shelter Sign
- Item #:
- A5190
- Label Reads:
- Tornado Shelter / Refugio Contra Tornados
- Compliance:
-
- LEED Compliant
- ECCN Certification
- OSHA 1910.1200(c)
- Shipping Declarations
Other configurations of this product
A Bilingual Tornado Shelter Sign has safety messages for emergency response protocol and compliance. A Bilingual Tornado Shelter Sign is a useful tool to help protect the health and safety of staff, and is not a substitute for necessary protective measures for lessening or eliminating hazards.

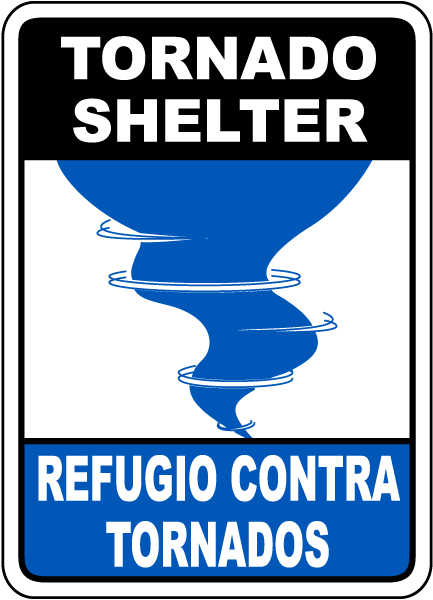

Tornado Shelter / Refugio Contra Tornados
|
10 × 14″
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Overlaminate | Mounting Holes | Sku | Quantity/Price | |||||||
|
|||||||||||
| .046″ Glow-in-the-Dark Plastic | N/A | Four 7/32″ holes (one in each corner) | A5190-LBC | $32.70 | $31.10 | $29.50 | $27.50 | $25.80 | $23.40 | ||
| .040″ Rust-Free Aluminum | None | Four 7/32″ holes (one in each corner) | A5190-FC | $19.10 | $18.05 | $15.75 | $15.25 | $14.30 | $12.00 | ||
| .055″ Polyethylene Plastic | N/A | Four 7/32″ holes (one in each corner) | A5190-BC | $10.75 | $10.30 | $9.75 | $9.25 | $7.75 | $6.50 | ||
| 4 Mil Glow-in-the-Dark Peel and Stick Polyester Label | N/A | N/A | A5190-DC | $19.90 | $17.90 | $16.90 | $16.50 | $15.90 | $14.90 | ||
| 3.5 Mil Peel and Stick Vinyl Label | N/A | N/A | A5190-AC | $10.40 | $9.25 | $8.95 | $8.25 | $7.45 | $6.25 | ||
|
12 × 18″
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Overlaminate | Mounting Holes | Sku | Quantity/Price | |||||||
|
|||||||||||
| .063″ White Rust-Free Aluminum | None | Four ¼″ holes (one in each corner) | A5190-A8C | $21.20 | $19.75 | $18.95 | $18.30 | $17.75 | $16.50 | ||
| .055″ Polyethylene Plastic | None | Four ¼″ holes (one in each corner) | A5190-A85 | $18.65 | $15.95 | $15.25 | $14.95 | $14.50 | $13.50 | ||
| .063″ Engineering Grade Reflective Aluminum | None | Four ¼″ holes (one in each corner) | A5190-A8D | $23.45 | $22.50 | $21.60 | $20.50 | $19.45 | $18.50 | ||
|
18 × 24″
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Overlaminate | Mounting Holes | Sku | Quantity/Price | |||||||
|
|||||||||||
| .080″ White Rust-Free Aluminum | None | Four ¼″ holes (one in each corner) | A5190-B9G | $37.65 | $35.75 | $33.95 | $32.25 | $30.65 | $29.15 | ||
| .055″ Polyethylene Plastic | None | Four ¼″ holes (one in each corner) | A5190-B95 | $26.95 | $24.75 | $23.75 | $23.00 | $22.25 | $21.20 | ||
| .080″ Engineering Grade Reflective Aluminum | None | Four ¼″ holes (one in each corner) | A5190-B9H | $39.60 | $37.62 | $35.74 | $33.95 | $32.25 | $30.64 | ||
Special Freight Arrangement:
Due to the size of this product, freight shipping will be required. You may contact our customer service team for a quote or you can place your order and a customer service representative will contact you about freight shipping charges.
If you would like to use your own freight carrier, please include your freight carrier account in the special instructions box at the bottom of the checkout page before placing your order. A customer service representative will be in contact with you if there are any questions.
Phone: 800-274-6271
Fax: 800-279-6897
Phone: 800-274-6271
Fax: 800-279-6897
SafetySign.com guarantees that we have the lowest price on every item we manufacture, plain and simple.
If you find a lower price, we'll match it!
Material Specifications:
Outdoor Durability:
Reflectivity:
Service Temp Range:
Max Recommended
Viewing Distance*
Viewing Distance*
Up To
Please see Size Tab below for more details.
* Under favorable viewing conditions.
* Under favorable viewing conditions.
Recommended Accessories
- All
- Hardware
- Tape
- Ties
Frequently Purchased Together
First Aid Sign
D4675
Which Size Sign Should I Choose?
The Bilingual Tornado Shelter Sign is offered in the size shown in the table below. Use the data in the table to help you decide if the size of this Bilingual Tornado Shelter Sign will meet your requirements.
![]()
| Size | Width | Height | Average Text Size |
Max Viewing Distance |
Available Materials | Mounting Holes | Corner Radius | Diagram |
|---|---|---|---|---|---|---|---|---|
| 10 × 14″ | 10″ | 14″ | 1 ½″ | Up to 37′ 6″ |
|
N/A | ¼″ | Diagram |
|
Four 7/32″ Holes (#10 or 3/16″ screws recommended) | ¼″ | Diagram | |||||
| 12 × 18″ | 12″ | 18″ | N/A | Coming Soon |
|
Four ¼″ Holes (#12 or 7/32″ screws recommended) | ½″ | Diagram |
| 18 × 24″ | 18″ | 24″ | N/A | Coming Soon |
|
Four ¼″ Holes (#12 or 7/32″ screws recommended) | ½″ | Diagram |
The viewing distances listed in this chart reflect the maximum viewing distance for the sign under favorable viewing conditions.
Favorable viewing conditions are those which allow for a clear, unobstructed view of the message on the sign. Examples of favorable viewing conditions are a bright lighting source over the sign, clear weather conditions, and a clear line of sight with no obstructions blocking the view of the sign from certain angles and no other nearby signs creating distractions.
In unfavorable conditions, the sign is viewable at up to half the favorable distance. Unfavorable viewing conditions are those which make it difficult to read the message of the sign. Examples of this are poor lighting such as a dimly lit room, obstructions blocking the view of the sign from certain angles, poor weather conditions, and other signs posted nearby which create a distraction.
It is the responsibility of the end user to determine the correct size, viewing distance, sign positioning, and sign size for your specific hazard. According to the ANSI Z535.2 sign standard, a ratio of 25 feet of viewing distance per inch of text height, under favorable viewing conditions, should be used to determine the size of your sign. Under unfavorable viewing conditions, such as in low light or for signs with complex messages, the ratio of viewing distance to text height is 12.5 feet to 1 inch.
| Material | Thickness | Outdoor Durability | Service Temp. Range | Available Sizes |
Overlaminate |
|---|---|---|---|---|---|
| Labels | |||||
| Adhesive-Backed Vinyl Outdoor grade high gloss calendared vinyl film, and coated with aggressive LEED compliant acrylic adhesive formulated to adhere to a variety of surfaces, ensuring durability in most commercial and industrial environments. Resistant to fading and mild chemicals. This material is in compliance with the standards set forth by the South Coast Air Quality Management District (SCAQMD) Rule #1168 and the Green Seal Standard, GS-36 for commercial adhesives pertaining to Volatile Organic Compounds (VOC). Clean and dry surface before applying. Minimum application temperature is 50°F. | 3.5 mils | 4 to 5 Years | -20° to 176° F |
|
N/A |
| Glow-in-the-Dark Adhesive-Backed Polyester 4 mils thick glow-in-the-dark polyester film with a LEED compliant adhesive, suitable for indoor and outdoor applications. Not resistant to contact with chemicals. This material will glow for up to 10 hours when it is charged with a strong light source for at least 60 minutes. Daylight color is soft-yellow to eggshell white. Color in darkness is photoluminescent yellowish. Storage stability of 1 year. Elongation, 164.0% with a tensile strength of 3.1 K/ 10mm. This material meets or exceeds DIN 67510-I, ASTM 2072, ISO 15370, IMO Res.A.752 (18), JIS Z9100, NYC RS6-1. Clean and dry surface before applying. Minimum application temperature is 60°F (15°C). | 4 mils | Indefinite Indoors / Up to 3 years Outdoors | 120° F (50° C) Max. |
|
N/A |
| Plastic | |||||
| Polyethylene Plastic A tough plastic that is rust free and resistant to chips, cracks, fading and mild chemicals. It is an economical alternative to aluminum without a significant compromise in durability. Thicknesses of .055" and less will easily bend to fit certain surfaces without causing material fractures. | 0.055″ | 3 to 5 Years | -40° to 180° F |
|
N/A |
|
|
||||
| Glow-in-the-Dark Plastic .046" photoluminous plastic will not rust, is resistant to chips and cracks, and will easily bend to certain surfaces without causing material fractures. It is designed for indoor use only. This material can be charged by any light source in as little as 15 minutes, and will glow for up to 10 hours when it is charged with a strong light source for at least 60 minutes. Cool white light sources such as fluorescent lighting and sunshine are excellent activators. Soft warm lighting such as incandescent light bulbs are not as effective. This material meets or exceeds DIN 67510-I, ASTM 2072, ISO 15370, IMO Res. A.752 (18), JIS Z9100, NYC RS6-1. | 0.046″ | Indoor Use Only | -4° to 122° F |
|
N/A |
| Aluminum | |||||
| Rust-Free Aluminum A durable metal material that will not chip, crack, or rust, offers superior resistance to harsh weather conditions, and has good chemical resistance properties. The optimal choice for outdoor usage. | 0.04″ | 5 to 7 Years | -40° to 212° F |
|
|
| 0.063″ | 5 to 7 Years | -40° to 212° F |
|
|
|
| 0.08″ | 5 to 7 Years | -40° to 212° F |
|
|
|
|
Engineering Grade Reflective Aluminum
A durable enclosed lens retro-reflective material permanently adhered to aluminum. It is an economical choice for non-critical traffic signs, parking lot signs, and safety signs. The pattern free face allows for clean graphic imaging. It meets the requirements of ASTM D4956 Type I, and will remain effective for up to 7 years. Resistant to fading and mild chemicals.
Reflectivity:
|
0.063″ | Up to 7 Years | -10°F - 130°F |
|
|
| 0.08″ | Up to 7 Years | -10°F - 130°F |
|
|
|
| None | Engineering Grade | High Intensity Prismatic | Diamond Grade | |
|---|---|---|---|---|
| ATSM D956 Type | – | Type I | Type IV | Type IX |
| Brightness | – | Standard Material | 3x More | 10x More |
| Night-Time Visibility | – | 500' | 1,000' | 1,500' |
| Reflectivity |
|
|
|
|
Using the latest digital printing processes to print your Bilingual Tornado Shelter Sign directly onto the sign, SafetySign.com reduces your set-up time, and eliminates any need for set-up charges or minimum orders. These advanced processes allow your Bilingual Tornado Shelter Sign to resist peeling, unlike signs that use a laminate to keep the text and graphics adhered to the sign material.
Printing Methods
Cross-Hatch Ink Adhesion Test
SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.
We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.
Fonts
The text is printed in Arial Black font.
The Bilingual Tornado Shelter Sign from SafetySign.com uses this font to create a bold message that stands out in order to grab your attention, while also remaining clearly legible at the maximum safe viewing distance of the product.
