Ammonia Pipe Label - GHS03 by

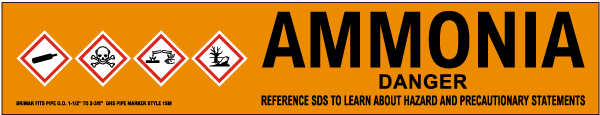

Ammonia Pipe Label

Ammonia Pipe Label
Item #
EZ Marker Reads
EZ Marker Design
GHS04 Compressed Gas Symbol, GHS09 Toxic Symbol, GHS05 Corrosive Symbol and GHS08 Harmful to the Environment Symbol.
  • ECCN Certification
  • OSHA 1910.1200(c)
  • Shipping Declarations


Use in Conjunction With Arrows to Comply With ANSI/ASME A13.1






Price: $5.25
Low Price Guarantee
0 In Stock
Special freight arrangements are necessary. Learn More

Need a quote for a large order? Call 800−274−6271 or email us.

GHS Pipe Markers are adhesive backed markers that you peel and stick. Brimar's specially formulated adhesive is applied with a heavy coating to ensure adhesion to a variety of surfaces. Apply markers only to clean and dry surfaces. Minimum of 50°F is required for installation. GHS Pipe Markers comply with ANSI/ASME A13.1 standards if used in conjunction with directional arrows.

Product Information


GHS Pipe Marker Design
UN #
NFPA Rating
Health Hazard 3 / Fire Hazard 1 / Instability 0
HMIS Rating
Health Hazard 3 / Flammability Hazard 1 / Physical Hazard 0 / Personal Protection 1
Anhydrous ammonia, Aqua ammonia, Aqueous ammonia
Physical Description
Colorless gas with a pungent, suffocating odor
Signal Word
GHS Classification
Acute Toxicity, Inhalation (Category 4)
Skin Corrosion / Irritation (Category 1B)
Serious Eye Damage / Irritation (Category 1)
Gases Under Pressure (Liquefied gas)
Flammable Gases (Category 2)
Acute Aquatic Toxicity (Category 1)
GHS Symbols
GHS04 / GHS09 / GHS05 / GHS08
Hazard Statement
Harmful if inhaled.
Causes severe skin burns and serious eye damage.
Flammable gas.
Contains gas under pressure; may explode if heated.
Very toxic to aquatic life.
Precautionary Statement
P210: Keep away from heat, hot surface, sparks, open flames and other ignition sources. - No smoking.
P260: Do not breathe dust/fume/gas/mist/vapors/spray.
P261: Avoid breathing dust/fume/gas/mist/vapors/spray.
P264: Wash ... thoroughly after handling.
P271: Use only outdoors or in a well-ventilated area.
P273: Avoid release to the environment.
P280: Wear protective gloves/protective clothing/eye protection/face protection.

EZ Pipe Markers (Stick On Labels)

Self-adhesive markers you peel and stick

  • Brimar's specially formulated adhesive is applied with a heavy coating to ensure adhesion to a variety of surfaces.
  • Markers should only be applied to clean and dry surfaces.
  • Markers comply with the new ANSI / ASME A13.1 2020 standard if used in conjunction with arrows, all 3 options of assembly shown below are in compliance.
  • Durability: 4 to 5 years outdoors
  • Service Temp: -20 to 200° F
  • Minimum Application Temp: 50° F
  • Surface Prep: Clean & Dry
  • Spec Compliance: ANSI / ASME A13.1 2020
EZ Marker with Arrow Banding Tape
EZ Marker with Arrow Banding Tape
EZ Marker with Arrow Banding Tape

Size Chart (Pipe Overall Diameter, Marker Size, & Letter height)

The following chart shows the recommended pipe marker letter height and marker size based on the outside pipe diameter, including the insulation of the pipe to be identified. For pipes with an O.D smaller than 3/4″ (19mm) and for valve and fitting identification, the use of a permanent legible tag is recommended.

Size 1XSM 1SM 1 1LG
Pide O.D 3/4"
to 1-1/4"
to 2-3/8"
to 7-7/8"
8" to 10"
Marker Size (W x H) 8" x 1-1/2" 8" x 1-1/2" 14" x 2-1/4" 24" x 4"
& Chemical Name
0.50" 0.75" 1.3" 2.5"
Signal Word Size 3/16" 3/16" 1/4" 1/2"

Latest Revision ANSI / ASME A13.1

ANSI / ASME is the most common pipe identification standard used in the United States. The standard specifies the primary and secondary means of identifying pipe content, as well as the size, color and placement of the identification device.

1. Primary Identification

The legend (name of pipe content) and directional flow arrow remain the primary means of identifying pipe content. The size and placement of the marker and arrow has not changed. See ANSI / ASME size table and installation recommendations for details.

Legends should use arrows to indicate the direction of flow, where flow can be in both directions, arrows in both directions should be displayed. Contents should be identified by a legend with sufficient additional details such as temperature, pressure, etc. Legends should be brief, informative, pointed, and simple for greatest effectiveness.

Marker illustration

1.1 Additional Means of Identification ASME A13.1

ASME A13.1 incorporated the GHS pictograms into the 2015 revision and has recommended their use as part of the legend.

"The applicable GHS pictograms as illustrated in Fig.1 may be included as part of the legend. Where piping is connected to containers that are labeled in accordance with GHS requirements, a corresponding label on the piping may be provided. The corresponding label should contain at least the product name or identifier, the pictogram, the signal word, and the physical, health, and environmental hazard statements."

GHS Pictogram

2. Secondary Identification

ASME A13.1 4.2 Color: "Color should be used to identify the characteristic hazards of the contents. Color should be displayed on, or contiguous to, the piping by any physical means, but its use shall be used in combination with a legend. Color may be used in continuous, total-length coverage or in intermittent displays. Colors preceded by the word "Safety" shall meet the requirements of ANSI / NEMA Z535.1"

Fire Quenching Fluids

Safety Red Background / White Legend

Toxic & Corrosive Fluids

Safety Orange Background/ Black Legend

Flammable Fluids

Safety YellowBackground / Black Legend

Combustible Fluids

Safety Brown Background /White Legend

Potable, Cooling, Boiler feed, & other Water

Safety Green Background/ White Legend

Compressed Air

Safety Blue Background / White Legend

Defined by the User

Safety Purple Background / White Legend

Defined by the User

Safety White Background / Black Legend

Defined by the User

Safety Gray Background / White Legend

Defined by the User

Safety Black Background / White Legend

Flammable Fluids
Used for fluids that, under ambient or expected operating conditions, are a vapor or procedure vapors that can be ignited and continue to burn in air. The terms thus may apply, depending on service conditions, to fluids defined for other purposes as flammable or combustible
Oxidizing Fluids
Oxidizing fluid is any gas or liquid that may, generally by providing oxygen, cause or contribute to the combustion of other material more than air does.
Fire Quenching Fluids
This classification includes water, foam and CO2 used in sprinkler systems and fire fighting piping systems.
Toxic & Corrosive Fluids
This classification includes fluids that are corrosive or toxic, or will produce corrosive or toxic substances when released.
Combustible Fluids
This classification includes fluids that can burn but are not flammable.

3. Placement

Marker visibility

Always position pipe labels on pipes to achieve the best visibility. Install pipe labels below or above the horizontal centerline of the pipe when pipes are located above or below the normal line of vision.

Pipe marker illustration
Install pipe labels close to valves or flanges.
Plastic Lockout Hasp 428 C3504
Apply pipe labels adjacent to changes in direction and/or branches.
Marker installation options
Install pipe labels before and after all wall, floor and ceiling penetrations.
Marker installation options
Install pipe labels at frequent intervals on straight pipe runs Brimar recommends 20 to 25ft.

4. Abandoned Piping

Piping that has been abandoned in place should be identified. The recommended color scheme is a safety white background with black letters. A black border should be added to the identification. When the abandoned piping is protected from corrosion by the addition of a pressurized fluid or contains residual hazardous material, the legend should indicate that.
