Fire Auto Sprinklers Pipe Marker - 1F40, Fire Sprinkler Pipe Markers by SafetySign.com

Fire Auto Sprinklers
3″ Wide × ⅜–½″ Diameter (Wrap-Around Style AA)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Thermoformed Wrap-Around Vinyl 1F40AA R/W $1.95 $1.75 $1.55
8″ Wide × ¾–1″ Diameter (Wrap-Around Style A)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Thermoformed Wrap-Around Vinyl 1F40A R/W $2.15 $1.90 $1.60
8″ Wide × 1⅛–2⅜″ Diameter (Wrap-Around Style B)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Thermoformed Wrap-Around Vinyl 1F40B R/W $2.75 $2.40 $2.15
12″ Wide × 2½–3¼″ Diameter (Wrap-Around Style C)
Material Sku Quantity/Price
1–99 100–249 250+
.025″ Thermoformed Wrap-Around Vinyl 1F40C R/W $5.45 $4.70 $3.95
12″ Wide × 3⅜–4½″ Diameter (Wrap-Around Style D)
Material Sku Quantity/Price
1–99 100–249 250+
.025″ Thermoformed Wrap-Around Vinyl 1F40D R/W $5.70 $5.15 $4.35
12″ Wide × 4⅝–6″ Diameter (Wrap-Around Style E)
Material Sku Quantity/Price
1–99 100–249 250+
.025″ Thermoformed Wrap-Around Vinyl 1F40E R/W $6.05 $5.45 $4.45
12″ Wide (Straps to 6⅛–7⅞″ Pipe OD Style F)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Strap-On Vinyl 1F40F R/W $6.05 $5.45 $4.45
24″ Wide (Straps to 8–10″ Pipe OD Style G)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Strap-On Vinyl 1F40G R/W $8.60 $7.95 $7.00
32″ Wide (Straps to 10″+ Pipe OD Style H)
Material Sku Quantity/Price
1–99 100–249 250+
.015″ Strap-On Vinyl 1F40H R/W $11.85 $10.70 $9.20
Special Freight Arrangement: Due to the size of this product, freight shipping will be required. You may contact our customer service team for a quote or you can place your order and a customer service representative will contact you about freight shipping charges. If you would like to use your own freight carrier, please include your freight carrier account in the special instructions box at the bottom of the checkout page before placing your order. A customer service representative will be in contact with you if there are any questions.

Phone: 800-274-6271
Fax: 800-279-6897
Oops!
This item can only be purchased with quantity . Please enter a new quantity and try again.
SafetySign.com guarantees that we have the lowest price on every item we manufacture, plain and simple.
If you find a lower price, we'll match it!
Material Specifications:
Outdoor Durability:
Reflectivity:
Service Temp Range:
Max Recommended
Viewing Distance*
Up To
Please see Size Tab below for more details.
* Under favorable viewing conditions.

Fire auto sprinklers pipe markers meet specification compliances for ANSI / ASME A13.1 standards for the identification of fire sprinkler system pipes. Fire auto sprinklers pipe markers are available in wrap-around and strap-on formats for pipe outside diameters ranging from 1/2 inch to over ten inches and provide 360 degree visibility. 2 nylon ties are included with all markers for pipes with an outside diameter of 6-1/8" and larger so they can be easily affixed to the pipe.

  • Compliance
  • Size
  • Material
  • Printing

System #1 Markers: Wrap Around and Strap On Markers

These markers are manufactured with rigid vinyl, surface is printed with UV ink and then thermoformed. Thermoformed pipe markers are styles A thru E (pipes 1" thru 6"). These markers are simply uncoiled by hand, and automatically recoiled around the pipe. Marker sizes C, D, E are supplied with a 1/2" wide strip of 3M™ 467 adhesive which only needs to be released when there is a constant pipe temperature of 120 degrees or more. Marker styles F thru H (pipes over 6") are not thermoformed because of their size, they are installed using nylon ties. Style F is supplied with two 34" long ties, styles G and H are supplied with two 48" long ties. For pipes larger than 14" in diameter order additional nylon ties.

  • These Markers are available in 2 ways, Coiled (Wrap Around) and flat with holes (Strap On).
  • For pipe diameters 3/4" thru 6" use Wrap Around Markers (Styles A, B, C, D, E) these markers are simply uncoiled by hand and automatically recoil around the pipe.
  • For pipe diameters 6" or larger use Strap On Markers (Styles F, G, H) these markers are installed using nylon ties or S.S. Strapping, Brimar supplies a pair of nylon ties with each of these markers.
  • Advantages of System #1 Markers: No pipe preparation, 360° visibility, speed of installation, arrows included and overall better appearance.
  • Durability: 4 to 7 years outdoors
  • Service Temp: -40 to 180° F
  • Minimum Application Temp: None
  • Surface Prep: None
  • Spec Compliance: ANSI / ASME A13.1 2007
EZ Markers with Banding Tape and ArrowEZ Markers with Arrow Banding Tape

MARKER SIZE, LETTER HEIGHT & MAX. CHARACTERS PER MARKER CHART

The following chart shows the recommended pipe marker letter height and marker size based on the outside pipe diameter of the pipe to be identified. For pipes smaller than 3/4" and for valve identification, the use of a permanent legible tag is recommended.

STYLE A (Wrap Around)
For pipes with O.D. of 3/4" to 1"

Legend Size: 1/2" High
Marker Size: 8" wide

STYLE B (Wrap Around)
For pipes with O.D. of 1-1/8" to 2-3/8"

Legend Size: 3/4" High
Marker Size: 8" wide

STYLE C (Wrap Around)
For pipes with O.D. of 2-1/2" to 3-1/4"

Legend Size: 1-1/4" High
Marker Size: 12" wide

STYLE D (Wrap Around)
For pipes with O.D. of 3-3/8" to 4-1/2"

Legend Size: 1-1/4" High
Marker Size: 12" wide

STYLE E (Wrap Around)
For pipes with O.D. of 4-5/8" to 6"

Legend Size: 1-1/4" High
Marker Size: 12" wide

STYLE F (Strap On)
For pipes with O.D. of 6-1/8" to 8"

Legend Size: 1-1/4" High
Marker Size: 12" wide x 8" high
Markers are supplied with two 34" Nylon Ties

STYLE G (Strap On)
For pipes with O.D. of 8-1/8" to 10"

Legend Size: 2-1/2" High
Marker Size: 24" wide x 10" high
Markers are supplied with two 48" Nylon Ties

STYLE H (Strap On)
For pipes with O.D. over 10"

Legend Size: 3-1/2" High
Marker Size: 32" wide x 10" high
Markers are supplied with two 48" Nylon Ties

Pipe
O.D.
Text
Size
Marker Style Maximum Characters
3/4" - 1 1/4" 0.5" A 22
1 1/2" - 2" 0.75" B 18
2 1/4" - 6" 1.25" C, D, E 22
8" - 10" 2.5" F, G 22
Over 10" 3.5" H 16

BACKGROUND COLOR

Color is the secondary means to identify the contents of a piping system but, many times the most important. The color of the marker should be used to identify the characteristic hazard of the contents of the pipe. The following chart list the classifications shown by ANSI / ASME A13.1 2007 as the suggested color combinations for the pipe markers.

FLUID SERVICE COLOR COMBINATIONS
Fire Quenching Fluids
Safety Red Background / White Legend
Toxic & Corrosive Fluids
Safety Orange Background / Black Legend
Flammable Fluids
Safety Yellow Background / Black Legend
Combustible Fluids
Safety Brown Background /White Legend
Potable, Cooling, Boiler feed, & other Water
Safety Green Background/ White Legend
Compressed Air
Safety Blue Background / White Legend
Defined by the User
Safety Purple Background / White Legend
Defined by the User
Safety White Background / Black Legend
Defined by the User
Safety Gray Background / White Legend
Defined by the User
Safety Black Background / White Legend

LEGENDS & DIRECTIONAL FLOW

The standard regards the legend (wording on marker) to be the primary means of identifying the content of the pipe. The marker should give the name of the contents of the pipe in either the full name or abbreviated form. Arrows are also required to indicate the directional flow of the contents. Legends should be brief, pointed, and simple for greatest effectiveness. Contents should be identified with sufficient additional details such as temperature, pressure, etc., as are necessary to identify the hazard.
Scheme

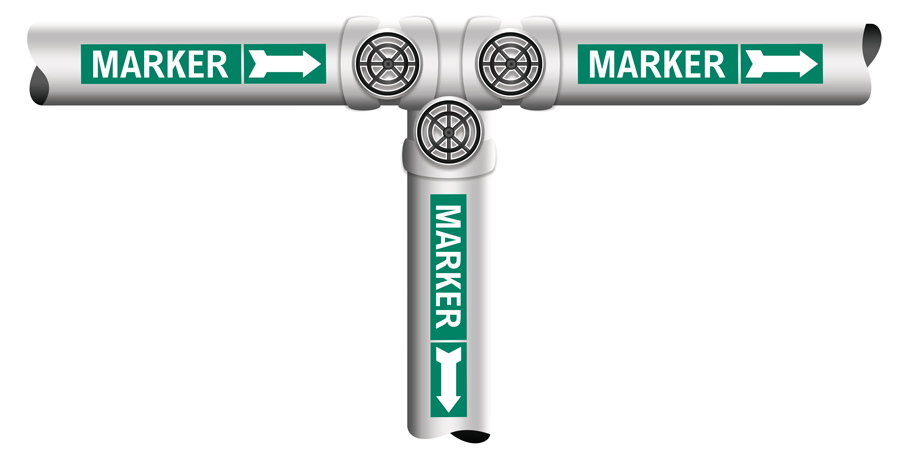

  • Legends shall be installed close to valves

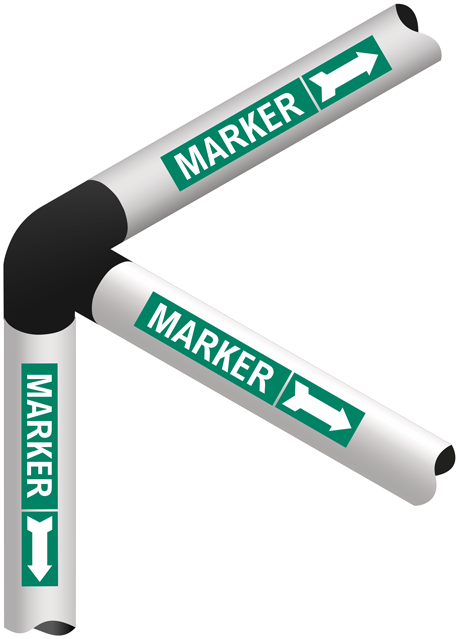

  • Legends shall be installed near branches and whenever a pipe changes direction.

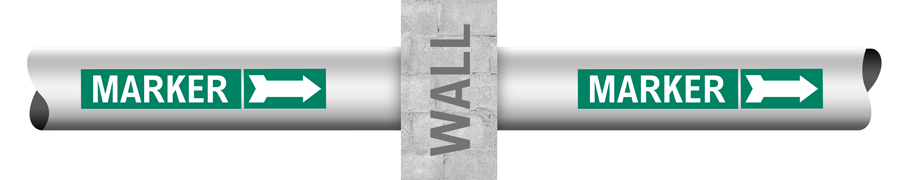

  • Legends shall be installed before and after all wall, floor and ceiling penetrations.

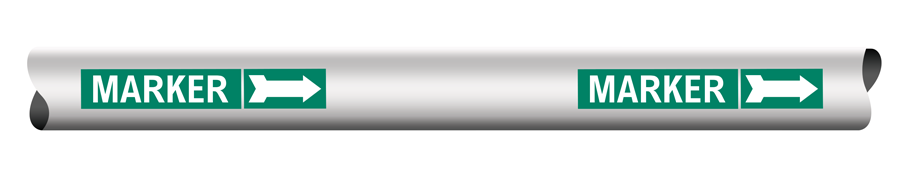

  • Legends shall be at frequent intervals on straight pipe runs. Brimar recommends 20 ft.
  • Legends shall be installed on pipes to achieve the best visibility.
Scheme
Size Width Min Pipe
Diameter
Max Pipe
Diameter
Average
Text Size
Available Materials Diagram
3″ Wide × ⅜–½″ Diameter (Wrap-Around Style AA) 3″ ⅜″ ½″ ¼″
  • .015″ Thermoformed Wrap-Around Vinyl
Diagram
8″ Wide × ¾–1″ Diameter (Wrap-Around Style A) 8″ ¾″ 1″ ½″
  • .015″ Thermoformed Wrap-Around Vinyl
Diagram
8″ Wide × 1⅛–2⅜″ Diameter (Wrap-Around Style B) 8″ 1⅛″ 2⅜″ ¾″
  • .015″ Thermoformed Wrap-Around Vinyl
Diagram
12″ Wide × 2½–3¼″ Diameter (Wrap-Around Style C) 12″ 2½″ 3¼″ 1¼″
  • .025″ Thermoformed Wrap-Around Vinyl
Diagram
12″ Wide × 3⅜–4½″ Diameter (Wrap-Around Style D) 12″ 3⅜″ 4½″ 1¼″
  • .025″ Thermoformed Wrap-Around Vinyl
Diagram
12″ Wide × 4⅝–6″ Diameter (Wrap-Around Style E) 12″ 4⅝″ 6″ 1¼″
  • .025″ Thermoformed Wrap-Around Vinyl
Diagram
12″ Wide (Straps to 6⅛–7⅞″ Pipe OD Style F) 12″ 6⅛″ 7⅞″ 1¼″
  • .015″ Strap-On Vinyl
Diagram
24″ Wide (Straps to 8–10″ Pipe OD Style G) 24″ 8″ 10″ 2½″
  • .015″ Strap-On Vinyl
Diagram
32″ Wide (Straps to 10″+ Pipe OD Style H) 32″ 10″ 14″ 3½″
  • .015″ Strap-On Vinyl
Diagram
Material Thickness Outdoor Durability Service Temp. Range Available
Sizes
Thermoformed Wrap-Around Vinyl Semi-rigid thermoformed colored PVC vinyl extruded with UV inhibition for outdoor durability. Sizes C, D, E include a LEED Compliant adhesive strip for use when service temperatures exceed 100° F. 0.015″ 4 to 5 Years -40° to 160° F
  • 3″ Wide × ⅜–½″ Diameter (Wrap-Around Style AA)
  • 8″ Wide × ¾–1″ Diameter (Wrap-Around Style A)
  • 8″ Wide × 1⅛–2⅜″ Diameter (Wrap-Around Style B)
0.025″ 4 to 5 Years -40° to 160° F
  • 12″ Wide × 2½–3¼″ Diameter (Wrap-Around Style C)
  • 12″ Wide × 3⅜–4½″ Diameter (Wrap-Around Style D)
  • 12″ Wide × 4⅝–6″ Diameter (Wrap-Around Style E)
Strap-On Vinyl Semi-rigid colored PVC vinyl extruded with UV inhibition for outdoor durability. Vinyl material has four slotted holes which allow the marker to be easily strapped to a pipe. 0.015″ 4 to 5 Years -40° to 160° F
  • 12″ Wide (Straps to 6⅛–7⅞″ Pipe OD Style F)
  • 24″ Wide (Straps to 8–10″ Pipe OD Style G)
  • 32″ Wide (Straps to 10″+ Pipe OD Style H)

None
Engineering Grade
High Intensity Prismatic
Diamond Grade
  NoneEngineering GradeHigh Intensity PrismaticDiamond Grade
ATSM D956 Type Type I Type IV Type IX
Brightness Standard Material 3x More 10x More
Night-Time Visibility 500' 1,000' 1,500'
Reflectivity




This Fire Auto Sprinklers Pipe Marker is printed with the latest digital printing practices, which reduce set-up times and allows SafetySign.com to ship out faster than competitors. These advanced printing processes also eliminate set-up charges and order minimums. At SafetySign.com, we print your Fire Auto Sprinklers Pipe Marker with UV and chemical resistant inks directly to the substrate, helping to ensure durability in industrial and commercial use.
SafetySign Printing
Printing Methods

We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.

SafetySign Printing
Cross-Hatch Ink Adhesion Test

SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.

We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.

SafetySign Printing
Fonts

The text is printed in Arial Bold font.

The Fire Auto Sprinklers Pipe Marker from SafetySign.com uses this font to create a bold message that stands out in order to grab your attention, while also remaining clearly legible at the maximum safe viewing distance of the product.
