Flat Blade with Custom Image & Street Number
- Double-sided MUTCD Compliant Street Name Signs
- .080" thick Aluminum in EG, HIP or DG reflective sheeting
- Flat blade signs available in 6" tall with 4" text, and 9" tall with 6" text
Not what you're looking for?
Start Here To Design Your Sign
1 Choose A Sign Style
Select A Size
2 Enter Text Options
Street Name
Max Chars
Street Number (Max 5 characters)
3 Choose Other Sign Options
Mounting Option Mounting holes are not required for typical street sign post installation.
Notice:
The mounting hole option selected is not standard. Please see the updated pricing chart.4 Upload A Logo/Clipart
Printed Signs Gallery
Flat Blade Sign with Image Upload and Street Number
Note: This image is for preview purposes only. Click here to see an example of our print quality.
5 View Materials / Enter Quantity & Add to Cart
| Size | Materials | Quantity / Price | Enter Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| 24 × 6″ | .080″ Double-Sided Engineering Grade Reflective Aluminum |
|
|||||||
| 24 × 6″ | .080″ Double-Sided High Intensity Prismatic Reflective Aluminum |
|
|||||||
| 24 × 6″ | .080″ Double-Sided Diamond Grade Reflective Aluminum |
|
|||||||
Special Instructions/Comments
Street Name Text Size and Font
- On 6'' Signs the text size is 4'' upper case and 3'' lower case
- On 9'' Signs Text size is 6''' upper case and 5'' lower case.
- Signs use approved Highway Font Series
Image Color, Size of Suffix, Prefix and Arrows
- If sign above contains custom image, PLEASE NOTE IMAGE WILL BE PRINTED AS 1 COLOR IMAGE, THE SAME COLOR AS THE SIGN BACKGROUND. If you have a different requirement, call us at 800-274-6271
- On 6'' signs, small suffix/preffix will be 2'' high. While arrows range from 2.5'' to 3.5'' high.
- On 9'' signs, small suffix/preffix will be 3'' high. While arrows range from 4.5'' to 5'' high
Accessories
2-3/8'' dia. Round Post Flat Blade Street Name Sign Bracket
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 2-3/8'' dia. |
|
U-Channel Post Flat Blade Street Name Sign Bracket
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 180 Degree Angle |
|
U-Channel Post Flat Blade Street Name Sign Bracket
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 90 Degree Angle |
|
Cross Separator For Flat Blade Street Name Sign
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 90 Degree Angle |
|
Cross Separator For Flat Blade Street Name Sign
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| Variable Angle |
|
Green Enamel Breakaway Safety Splice
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| Safety Splice |
|
8ft Green Enamel U-Channel Post
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 8 ft. |
|
8ft Galvanized U-Channel Post
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 8 ft. |
|
2-3/8'' dia. 8ft Round Steel Posts
| Size | Price | Enter Qty | |||
|---|---|---|---|---|---|
|
|||||
| 8 ft. |
|
OFFICIAL AND PRIVATE USE STREET NAME SIGNS
Use of 6" street sign vs 9" street sign?
The 6'' high signs are used on local roads with speed limits of 25 mph or less. The 9'' high are the standard size for ground-mounted street name signs with speed limits higher than 25 mph.
- Suffix & Prefix Size? On 6'' signs, small suffix/prefix will be 2'' high. While arrows are 2.5'' high On 9'' signs, small suffix/prefix will be 3'' high. While arrows are 4.5'' high
- Sign Construction: Signs are manufactured on .080 Aluminum laminated with either Engineering Grade (Type I), High Intensity Prismatic (Type IV) or Diamond Grade (Type IX) Grade Reflective sheeting.
- Are these signs double sided? Signs are provided with the same copy on both sides
- Street Name Text Size: 6” Signs: Text size is 4'' upper case and 3'' lower case
9” Signs: Text size is 6'' upper case and 5'' lower case, created using Highway fonts. - Sign Mounting: Street name signs Are Not provided with holes, instead these signs have been designed to be mounted on posts by using the street name sign brackets available on this website.
Standard Sign Layouts
The layouts below illustrate the different options we typically offer, we realize you may have a different layout in mind, if that's the case please let us know by specifying it in the Special instructions field above.
- Option 1: Sign with Small Prefix abbreviation and Small Suffix abbreviation centered vertically.
- Option 2: Sign with Small Prefix and Small Suffix abbreviation plus street number. (If the opposite is required, simple specify it in the Special Instructions field above)
- Option 3: Street Name, Prefix and Suffix all the same size, abbreviated.
- Option 4: Street name with small top corner Suffix abbreviation.
- Option 5: Street name with small Suffix abbreviation and street number.
(If the opposite is required, simple specify it in the Special Instructions field above) - Option 6: Street name with large suffix (spelled out)
- Option 7: Street name only.
Flat Blade Street Name Sign Brackets
Street name signs are typically sold without mounting holes. None are needed if you use any of the street name sign brackets sold on this website. However, custom mounting holes are available, at an extra charge, for those applications where holes are needed.
Bracket for Round Posts
- Part Number: Y3449
- Cast aluminum street name sign bracket designed to fit 2-3/8" Round Posts.
- Mount flat blade signs.
- Includes six 5/16" set screws for flat blade sign mounting.
90° Cross Separator Use with Second Sign
- Part Number: Y3441.
- Cast aluminum street name sign bracket 4-way perpendicular top to bottom cross connection.
- Design for use with second sign.
- Mount flat blade signs.
- Includes four 5/16” set screws for flat blade sign mounting.

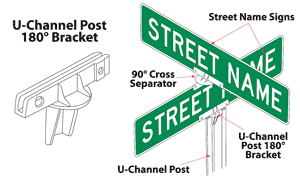

180° Bracket for U-channel Posts Sign sits parallel 180° to post.
- Par Number: Y3443
- Cast aluminum street name sign bracket designed to fit U-channel Posts.
- Sign sits parallel 180° to post.
- Mount flat blade signs.
- Supplied with 5/16" set screws for mounting sign to bracket. Also includes two 5/16" x 5/8" Hex bolts for mounting bracket to post.
90° Bracket for U-channel Posts Sign sits at 90°angle to post
- Part Number: Y3445
- Cast aluminum street name sign bracket designed to fit U-channel Posts.
- Sign sits at a right 90° angle to the post.
- Mount flat blade signs.
- Supplied with 5/16" set screws for mounting sign to bracket. Also includes two 5/16" x 5/8" Hex bolts for mounting bracket to post.
Universal Cross Separator Set to 45°/180° for oblique intersections
- Part Number: Y3447
- Cast aluminum street name sign bracket designed for second sign.
- Universal cross separator can be set to 45° or 180° angles for oblique intersections.
- Mount flat blade signs.
- Set includes: two piece cast aluminum separator, bolts / nuts and 4 sets of screws for flat blade sign mounting.
