We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.
5 × 3½″
|3.5 Mil Adhesive-Backed Vinyl Label||Sold in Packages of 5||None||J5531-AA||$15.95||$14.50||$13.95||$12.00||$10.95||$9.75|
|2 Mil UL® Recognized White Polyester||Sold in Packages of 5||UL® Recognized Clear Polyester||J5531-JF||$17.60||$16.50||$15.75||$14.25||$11.90||$9.75|
|3.5 Mil Adhesive-Backed Vinyl Label||Sold in Packages of 50||None||J5531-AAB||$69.50||$63.45||$57.00||$54.10||$45.25||$39.25|
|2 Mil UL® Recognized White Polyester||Sold in Packages of 50||UL® Recognized Clear Polyester||J5531-JFB||$134.95||$97.25||$79.75||$71.65||$58.25||$49.10|
- Floor label
- Voltage Markers
120 Volts Marker
277/408 Volts Marker
480 Volts Marker
120/208 Volts Marker
240 Volts Marker
120/240 Volts Marker
440 Volts Marker
277 Volts Marker
Write-on Volts Marker
220 Volts Marker
110 Volts Marker
460 Volts Marker
230 Volts Marker
4160 Volts Marker
High Voltage Marker
Keep Area Clear for 36 inches Label
Keep Area Clear for 48 inches Label
Danger Arc Flash and Shock Hazard Floor Sign
Keep Area Clear For 36 Inches Floor Sign
Keep Area Clear For 48 Inches Floor Sign
Arc Flash Appropriate PPE Required Floor Label
Arc Flash & Shock Hazard Follow Requirements In NFPA 70E
Caution Keep Area Clear For 48 Inches Floor Sign
Danger Keep Area Clear For 48 Inches Floor Sign
Electrical Panel Do Not Block Floor Label
Keep Clear Do Not Block Floor Label
Electrical Panel Do Not Block Floor Label
ARC FLASH LABELS
What is an Arc Flash?
An Arc Flash is an electric current passing through air between ungrounded conductors or between ungrounded conductors and grounded conductors resulting in an explosive burst of heat, light and a pressure wave. The temperatures can reach as high as 35,000°F. Exposure to these conditions burns the skin directly, may cause a variety of serious injuries and can even result in death.
How to avoid or minimize this hazard?
There are multiple national organizations that provide guidelines and standards on the risks and prevention of electrical related hazards in the work place. Among them are OSHA, ANSI and NFPA. Of these three organizations, NFPA provides the most comprehensive standard for safety-related work practices for employers to implement and provide a safe working area for employees relative to the hazards arising from the use of electricity.
What are the equipment labeling requirements?
Equipment labeling requirements are detailed in both the National Electrical Code (NEC) NFPA 70® as well as in the 2018 NFPA 70E®.
NEC® NFPA 70® states in 110.16:
"Electrical Equipment, such as switchboards, switchgear, panelboards, industrial control panels, meter socket enclosures, and motor control centers that is in other than dwelling occupancies and is likely to require examination, adjustment, servicing, or maintenance while energized shall be field marked or factory marked to warn qualified persons of potential electric arc flash hazards. The marking shall be located so as to be clearly visible to qualified persons before examination, adjustment, servicing, or maintenance of the equipment."
Equipment labeling is the responsibility of the employer when any electrical equipment must require examination, adjustment, servicing, or maintenance while energized.
The 2018 NFPA 70E® goes into further detail about the labeling requirements in Article 130.5 (H) Equipment Labeling:
Electrical Equipment such as switchboards, panelboards, industrial control panels, meter socket enclosures, and motor control centers that are in other than dwelling units and are likely to require examination, adjustment, servicing, or maintenance while energized shall be marked with a label containing the following information:
- Nominal system voltage
- Arc flash boundary
- At least one of the following:
- Available incident energy and the corresponding working distance, or arc flash PPE category in Table 130.7 (C)(15)(A)(b) or Table 130.7(C)(15)(B) for the equipment, but not both.
- Minimum arc rating of clothing.
- Site-specific level of PPE.
|Available Materials||Corner Radius||Diagram|
|5 × 3½″||5″||3½″||3/16″||Up to 4′ 3″||
|Material||Thickness||Outdoor Durability||Service Temp. Range||Available
|Adhesive-Backed Vinyl Outdoor grade high gloss calendared vinyl film, and coated with aggressive LEED compliant acrylic adhesive formulated to adhere to a variety of surfaces, ensuring durability in most commercial and industrial environments. Resistant to fading and mild chemicals. This material is in compliance with the standards set forth by the South Coast Air Quality Management District (SCAQMD) Rule #1168 and the Green Seal Standard, GS-36 for commercial adhesives pertaining to Volatile Organic Compounds (VOC). Clean and dry surface before applying. Minimum application temperature is 50°F.||3.5 mils||4 to 5 Years||-20° to 176° F||
|UL® Recognized White Polyester 2 mils thick UL Recognized white polyester with Hi-Performance pressure sensitive solvent based acrylic adhesive (UL® File No. MH10170 / CSA File No. 099241 L000), and a 1 mils thick UL Recognized clear polyester overlaminate film coated with a clear pressure sensitive acrylic adhesive (UL® File No. MH10170 / CSA File No. 099241 L000) that ensure a high degree of chemical, abrasion, and heat resistance. LEED Compliant adhesive has excellent adhesion to a wide variety of substrates such as stainless steel, acrylic, glass, coated metal and plastics. Minimum application temperature is 50°F. Clean and dry surface before applying.||2 mils||5 to 8 Years||-40° to 302° F||
|None||Engineering Grade||High Intensity Prismatic||Diamond Grade|
|ATSM D956 Type||–||Type I||Type IV||Type IX|
|Brightness||–||Standard Material||3x More||10x More|
SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.
We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.
The text is printed in Arial Black font.

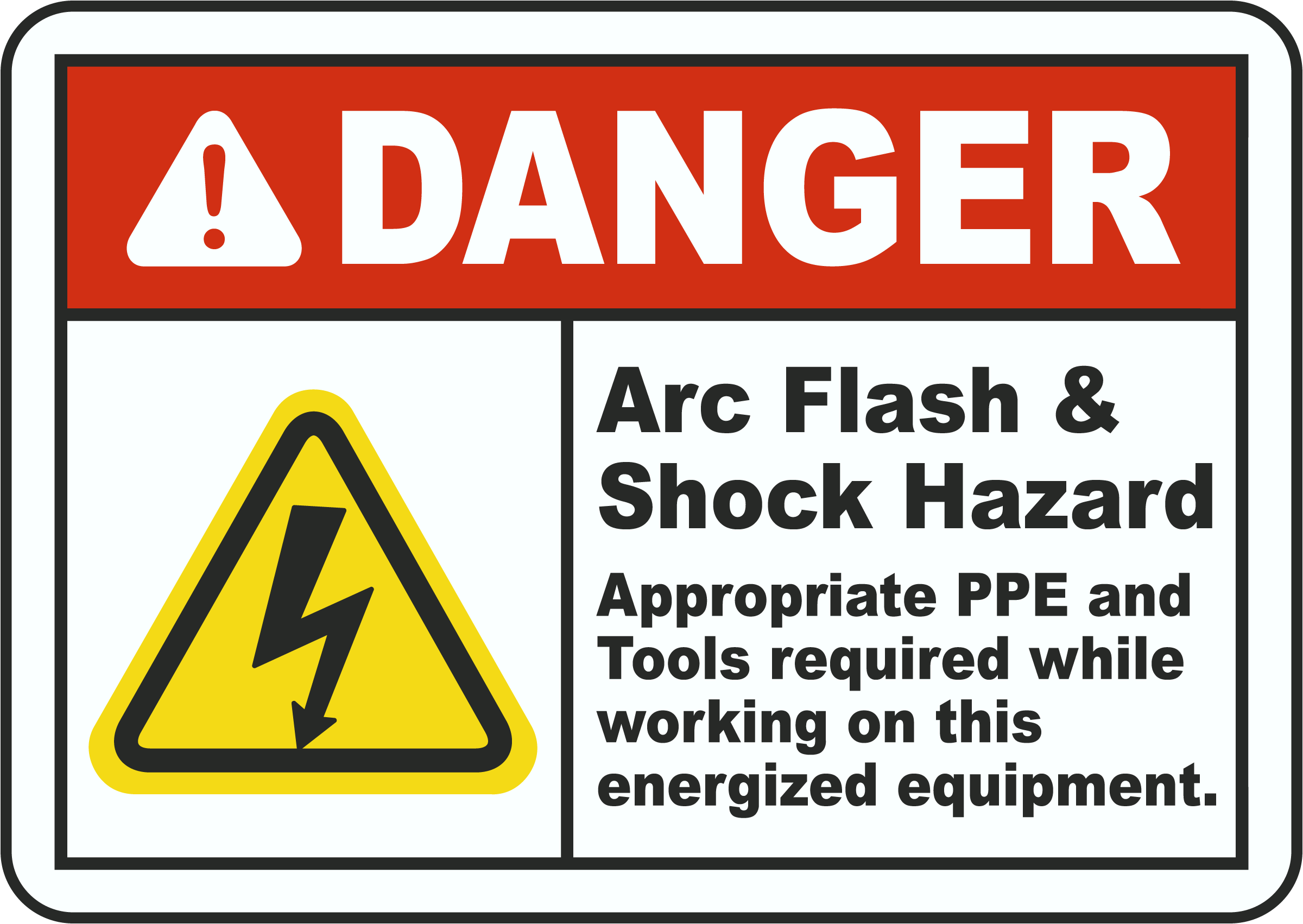

Danger Arc Flash & Shock Hazard Labels from SafetySign.com use this font to create a bold message that stands out and grabs your attention, while also remaining clearly legible at maximum viewing distances.
