We choose our printing processes for each product carefully so you receive the best quality product at the lowest price with industry-leading turnaround times. Depending on your size, material, quantity, and other factors, your sign will print using one of our carefully-tested methods.
7 × 10″
|.020″ Rust-Free Aluminum||Four 7/32″ holes (one in each corner)||SPR-19-FA||$7.45||$6.70||$6.30|
Sprinkler System Plates
Sprinkler system plates comply with the requirements of NFPA 13. They identify crucial components of a Fire Sprinkler System and the system’s operation. Failure to properly identify a sprinkler system may not only result in code violations and owner/contractor liability, in a worst-case scenario system failure in a fire emergency may occur.
What is NFPA 13?
NFPA 13 is the standard for the Installation of Sprinkler Systems and provides "a reasonable degree of protection for life and property from fire through the standardization of design, installation, and testing requirements for sprinkler systems, including private fire service mains, based on sound engineering principles, test data, and field experience." The standard applies to water supplies, sprinklers, fittings, piping, valves, all materials and accessories.
Where do sprinkler plates and identification signs need to be installed?
NFPA 13 provides a comprehensive table with a sprinkler system signage summary including sign locations and requirements. Identification signs should be permanently marked weatherproof metal signs, secured with corrosion-resistant wire, chain, or other acceptable means.
Identification sign location varies by type, but in general these should be applied on valves controlling and supplying a sprinkler system. Such locations may include:
- Control Valves, Drain Valves, Test Connection Valves, Alarm Valves, Dry Pipe Valves, Preaction Valves, and Deluge Valves
- Anti-Freeze Loops, Anti-Freeze Main Valves and Circulating Closed Loop Systems.
- Auxiliary Systems
- System Control Riser
|Size||Width||Height||Available Materials||Mounting Holes||Diagram|
|7 × 10″||7″||10″||
||Four 7/32″ Holes (#10 or 3/16″ screws recommended)||Diagram|
|Material||Thickness||Outdoor Durability||Service Temp. Range||Available
|Rust-Free Aluminum A durable metal material that will not chip, crack, or rust, offers superior resistance to harsh weather conditions, and has good chemical resistance properties. The optimal choice for outdoor usage.||0.02″||5 to 7 Years||-40° to 212° F||
|None||Engineering Grade||High Intensity Prismatic||Diamond Grade|
|ATSM D956 Type||–||Type I||Type IV||Type IX|
|Brightness||–||Standard Material||3x More||10x More|
SafetySign.com’s advanced printing process undergoes a stringent cross-hatching test. This specifically tests the adhesion and resistance to separation of the inks from the sign. In testing, a sample from the printing process is scored and covered in adhesive tape. The tape is removed and the sample assessed for adhesion quality.
We use a three-stage process to test all of our printing processes. We print our signs using only the processes that pass all three stages, giving you the highest quality signage possible.
The text is printed in Arial Bold font.

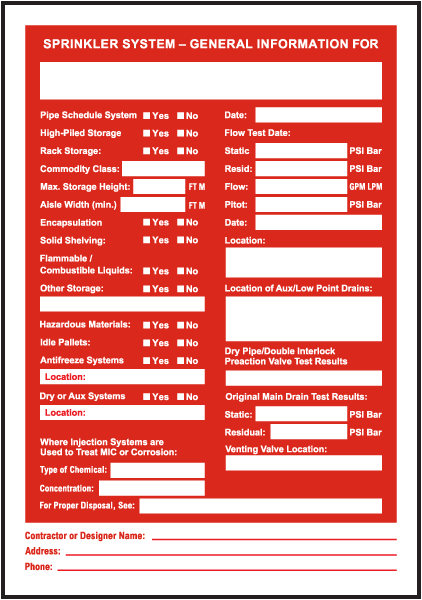

The Sprinkler System General Information Sign from SafetySign.com uses this font to create a bold message that stands out in order to grab your attention, while also remaining clearly legible at the maximum safe viewing distance of the product.
